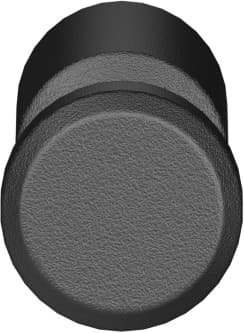

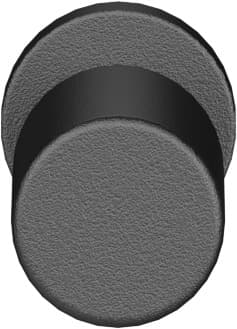

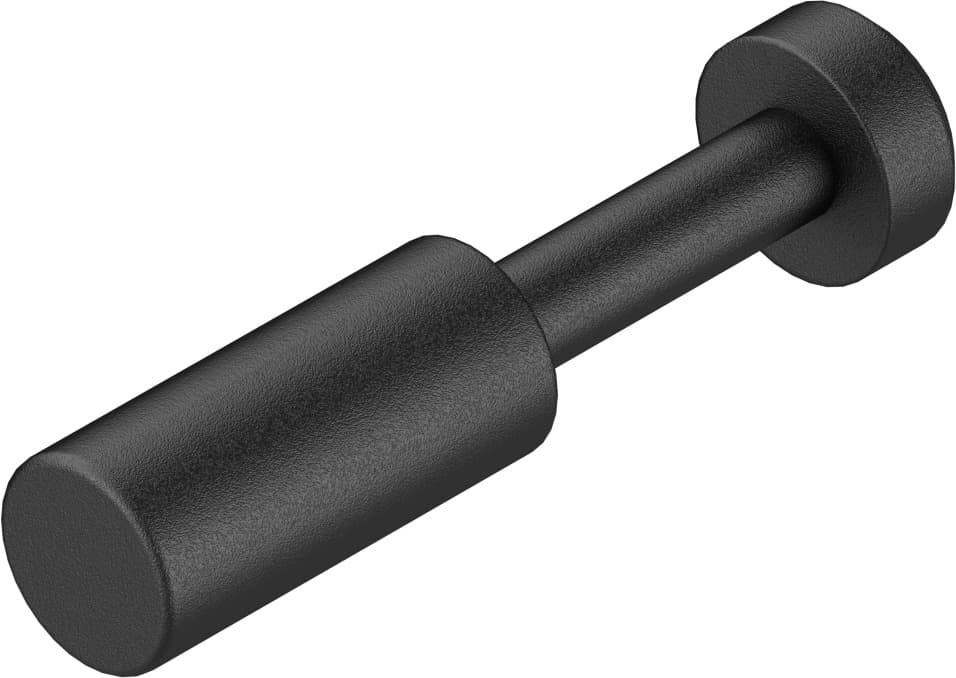

qsc-8h-50
Product ID:979
Updated: 2026/4/3
Key Features
- 1Operate within a wide pressure range of -0.95 to 6 bar for stable performance. 2、Function effectively in temperatures from -10°C to 80°C. 3、Meet high environmental standards with RoHS compliance. 4、Resist corrosion with a CRC 1 rating for harsh environments. 5、Install in any position for flexible system design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Blanking plug | Pack size | 50 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 1g |
| Pneumatic connection 1 | Push-in sleeve ? 8 mm | Note on materials | RoHS-compliant |
| Housing material | PBT | Manufacturer ID | 130701 |
Specifications may be subject to change without notice
