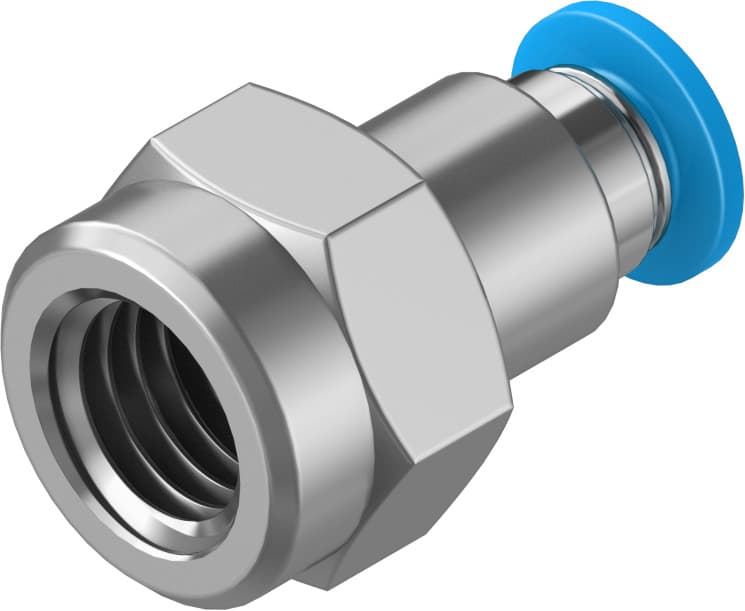

qsf-1/8-4-b-100
Product ID:987
Updated: 2026/4/3
Key Features
- 1Ensure reliable pneumatic connections with the Festo QSF-1/8-4-B-100 push-in fitting. 2、Support operating pressures up to 6 bar and temperatures from -10°C to 80°C. 3、Utilize a G1/8 female thread and 4 mm push-to-connect metric connection. 4、Benefit from nickel-plated brass construction for excellent corrosion resistance. 5、Achieve consistent assembly with a nominal torque of 7 Nm (±20%).
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 13g | Type of mounting | External hexagon, AF 14 |
| Pneumatic connection 1 | Internal thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130709 |
Specifications may be subject to change without notice
