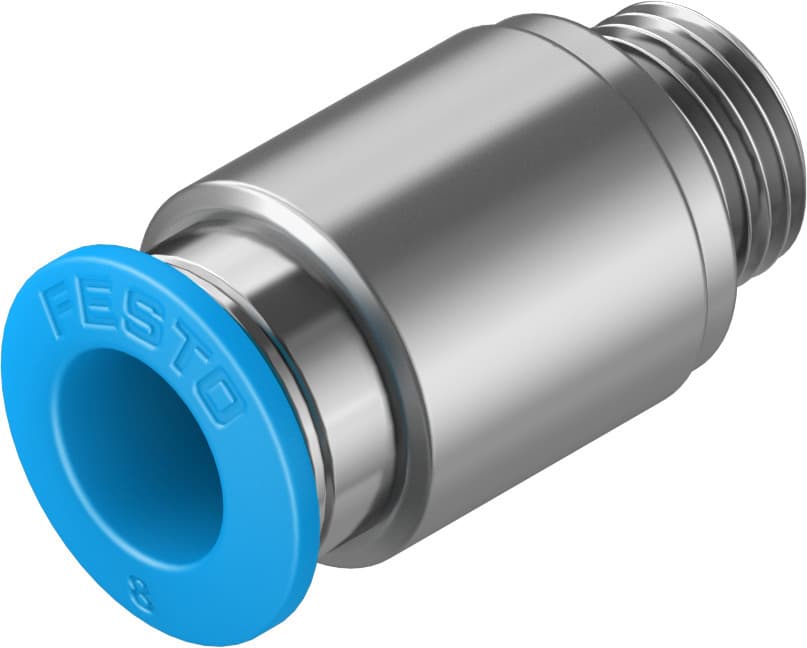

qs-g1/8-8-i
Product ID:5876
Updated: 2026/4/3
Key Features
- 1Ensure reliable sealing with an integrated sealing ring for minimal leakage. 2、Mount in any position for flexible pneumatic system design. 3、Utilize a compact, straight design to save space in tight installations. 4、Operate within a wide range from -10°C to 80°C and 6 bar. 5、Install quickly using the male thread with internal hexagon socket.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.3mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 5.4Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 12g |
| Type of mounting | Internal hexagon, AF 5 | Pneumatic connection 1 | External thread G1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186109 |
Specifications may be subject to change without notice
