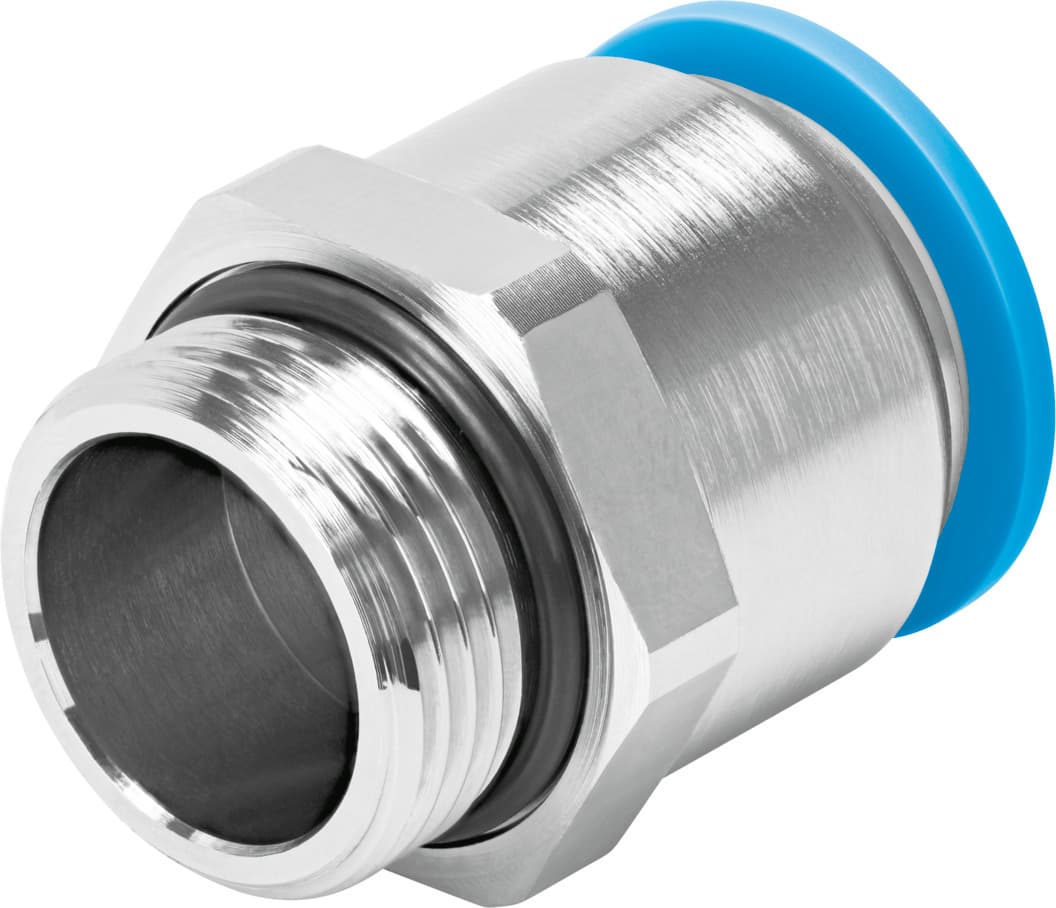

qs-g3/4-22
Product ID:15944
Updated: 2026/4/3
Key Features
- 1Ensure high corrosion resistance with brass nickel-plated housing. 2、Connect compressed air and water lines per ISO 8573-1:2010. 3、Achieve quick and secure connections using push-in fitting design. 4、Operate reliably from -20°C to 80°C in various environments. 5、Handle up to 14 bar maximum operating pressure consistently.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 20mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 203psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Nominal tightening torque | 20Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 90.5g | Type of mounting | External hexagon, AF 32 |
| Pneumatic connection 1 | External thread G3/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 22 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 8040613 |
