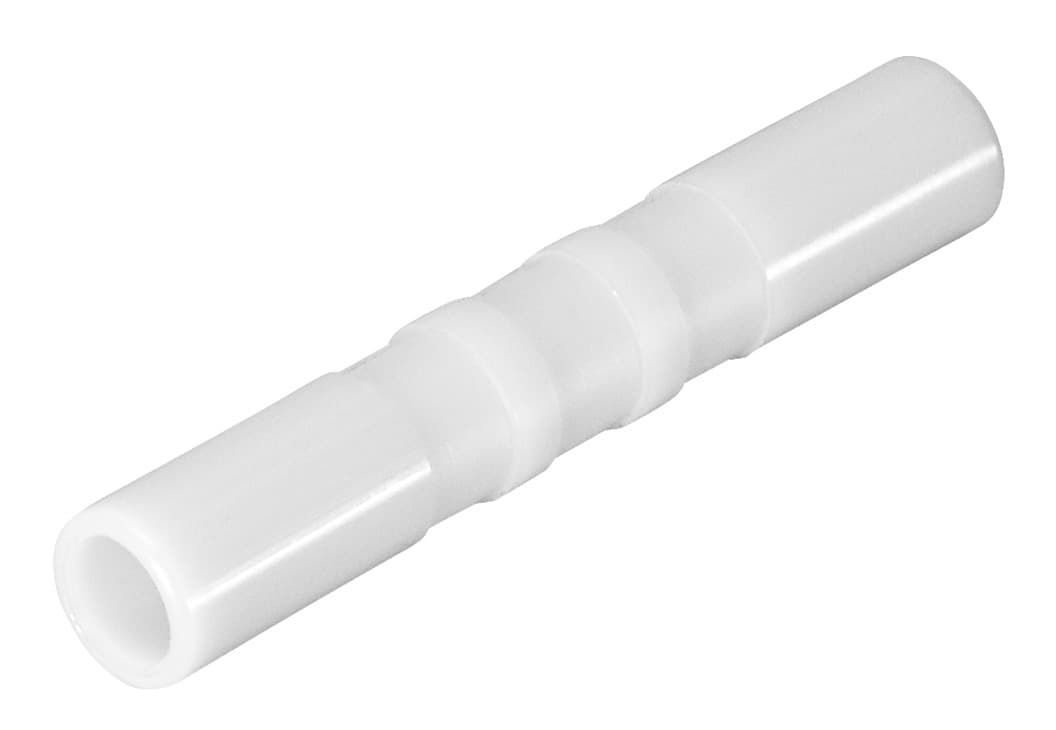

qsh-3/8-u
Product ID:2822
Updated: 2026/4/3
Key Features
- 1Ensure quick assembly with the push-pull principle. 2、Connect securely to 3/8 inch PTC pneumatic systems. 3、Operate reliably from -10°C to 80°C. 4、Withstand pressures from -0.95 to 10 bar. 5、Utilize durable, RoHS-compliant plastic and polymer.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Product weight | 1.5g | Pneumatic connection 1 | Push-in sleeve ? 3/8" |
| Pneumatic connection 2 | Push-in sleeve ? 3/8" | Ambient temperature Fahrenheit | 14°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PBT | Manufacturer ID | 153821 |
Specifications may be subject to change without notice
