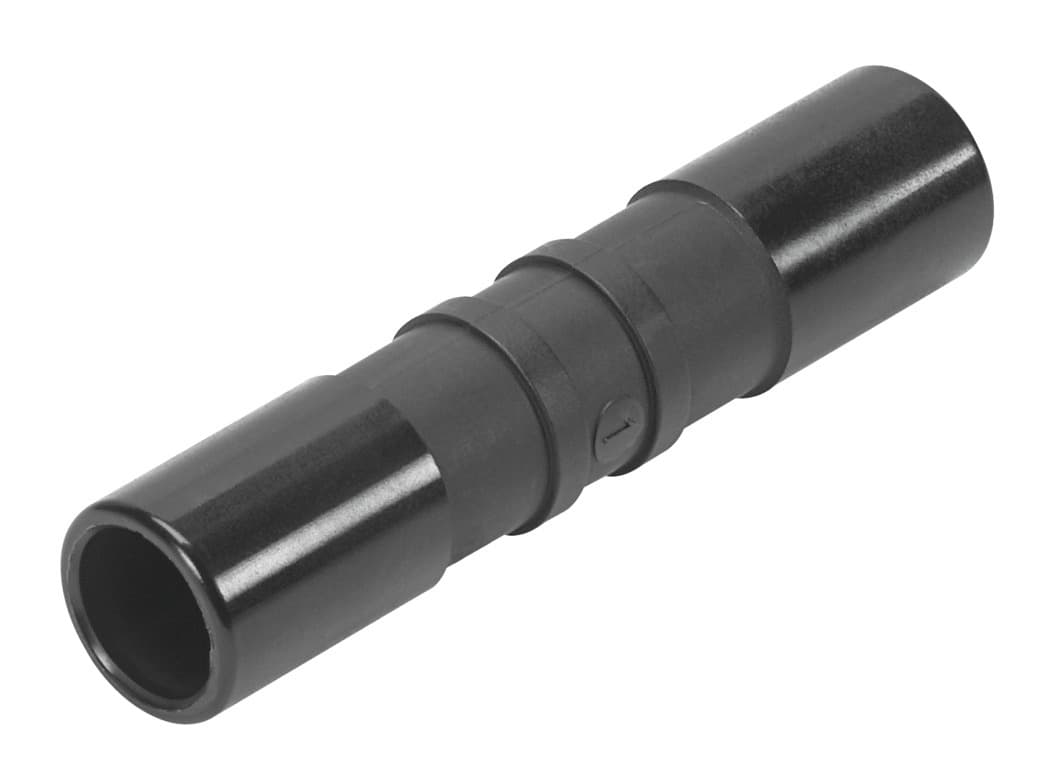

qsh-4-100
Product ID:1001
Updated: 2026/4/3
Key Features
- 1Ensure compatibility with compressed air and water media. 2、Construct from RoHS-compliant PBT material for sustainability. 3、Purchase conveniently in packs of 100 units for bulk projects. 4、Resist corrosion with CRC 1 rating for harsh environments. 5、Operate reliably from -10°C to 80°C in various conditions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.5mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 100 | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Product weight | 0.5g | Pneumatic connection 1 | Push-in sleeve ? 4 mm |
| Pneumatic connection 2 | Push-in sleeve ? 4 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Manufacturer ID | 130723 |
Specifications may be subject to change without notice
