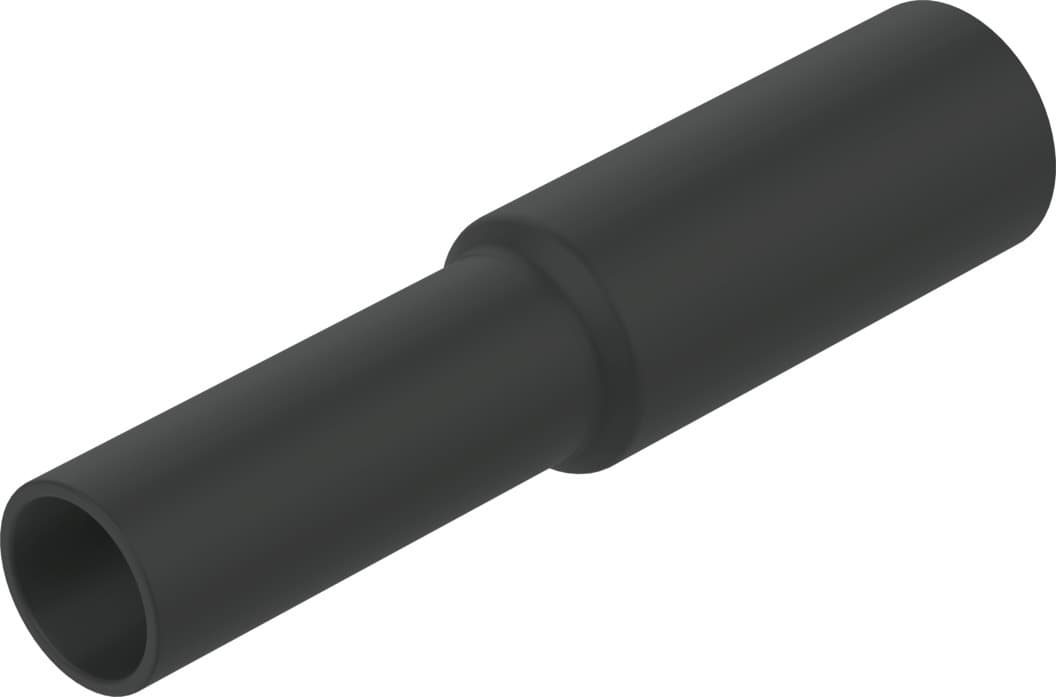

qsh-8-4
Product ID:912
Updated: 2026/4/3
Key Features
- 1Ensure secure pneumatic connections with the reliable Festo QSH-8-4 push-in sleeve. 2、Operate across a wide pressure range from -0.95 to 6 bar. 3、Resist corrosion in demanding environments with a CRC 1 rating. 4、Install the QSH-8-4 sleeve in any position for design flexibility. 5、Meet ISO 8573-1:2010 and RoHS standards for compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.3mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 0.9g |
| Pneumatic connection 1 | Push-in sleeve ? 8 mm | Pneumatic connection 2 | Push-in sleeve ? 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Manufacturer ID | 130625 |
Specifications may be subject to change without notice
