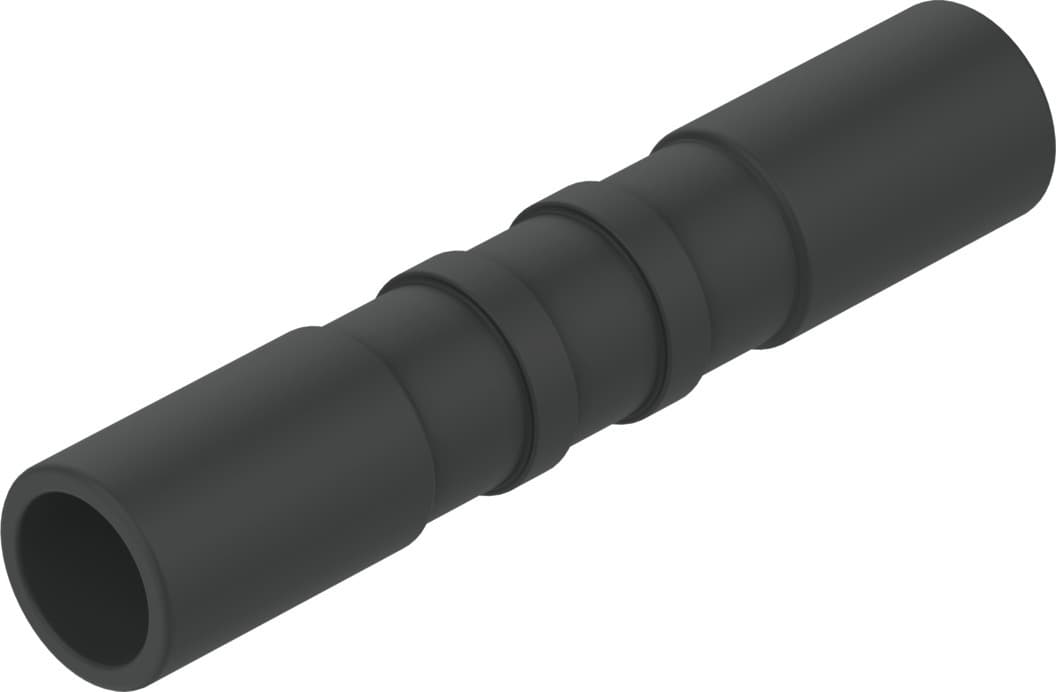

qsh-8-50
Product ID:1003
Updated: 2026/4/3
Key Features
- 1Ensure reliable pneumatic connections with a 6 mm nominal size. 2、Operate at pressures up to 0.6 MPa for versatile system use. 3、Withstand low corrosion stress with CRC 1 rating for durability. 4、Meet ISO 8573-1:2010 standards for air and water compatibility. 5、Simplify installation with a straight design and flexible mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 50 | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Product weight | 1g | Pneumatic connection 1 | Push-in sleeve ? 8 mm |
| Pneumatic connection 2 | Push-in sleeve ? 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Manufacturer ID | 130725 |
Specifications may be subject to change without notice
