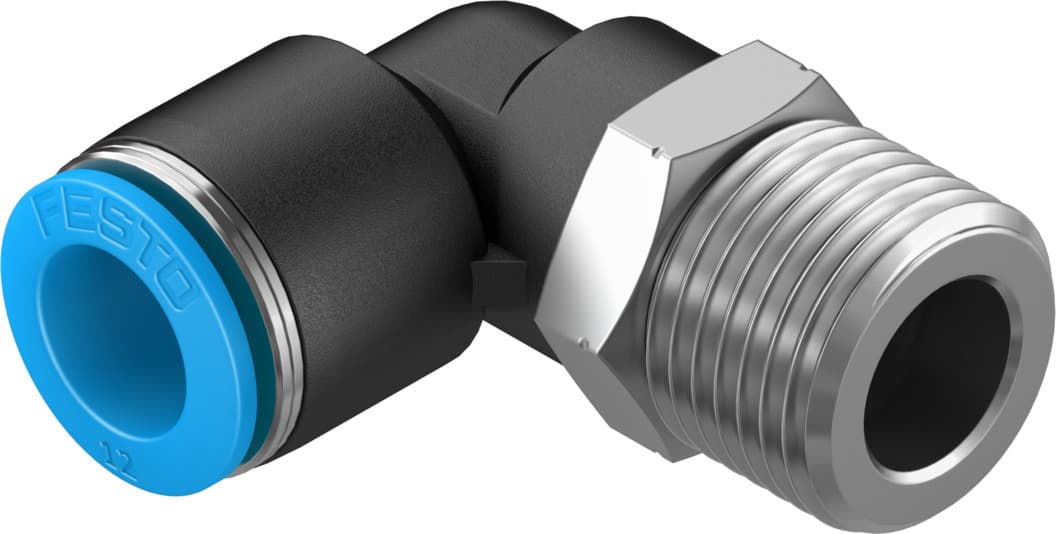

qsl-1/2-12-20
Product ID:1016
Updated: 2026/4/3
Key Features
- 1Support operating pressures up to 14 bar for demanding applications. 2、Feature 360° orientable design for flexible installation positioning. 3、Offer CRC 1 corrosion resistance to withstand harsh industrial environments. 4、Ensure RoHS compliance with PBT, POM, and NBR materials. 5、Weigh just 61 grams for compact and lightweight system integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 10.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape | Pack size | 20 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 61g | Type of mounting | External hexagon, AF 21 |
| Pneumatic connection 1 | External thread R1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130738 |
Specifications may be subject to change without notice
