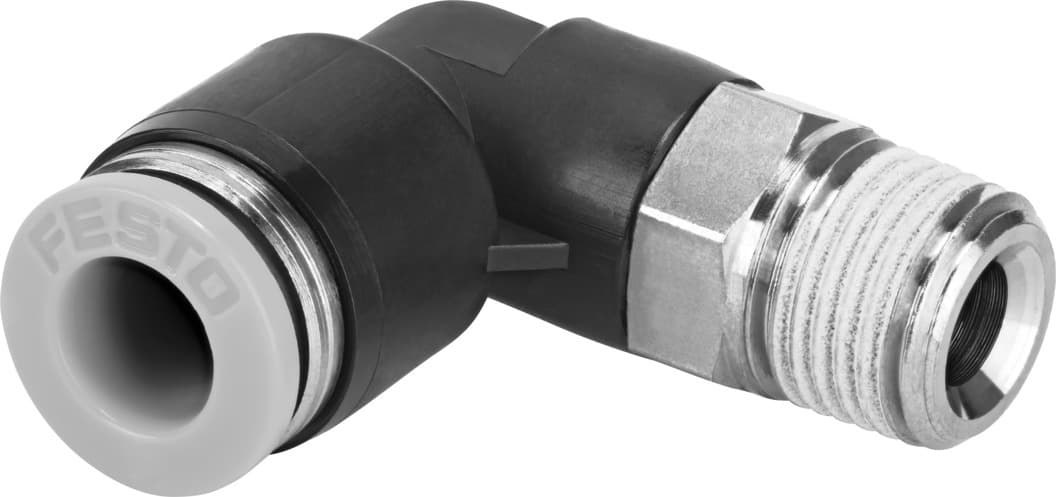

qsl-1/2-5/8-u
Product ID:6785
Updated: 2026/4/3
Key Features
- 1Achieve 360° orientation for versatile installation in pneumatic systems. 2、Utilize nickel-plated brass and plastic construction for durability and corrosion resistance. 3、Simplify assembly with a push-in design and external hexagon, requiring no tools. 4、Operate reliably across a wide pressure range from -0.95 to 10 bar. 5、Meet ISO 8573-1:2010 and RoHS standards for quality and sustainability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 13mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Max. tightening torque | 30Nm | Product weight | 94g |
| Type of mounting | External hexagon 1 | Pneumatic connection 1 | external thread 1/2 NPT |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 5/8" | Ambient temperature Fahrenheit | 14°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 190725 |
Specifications may be subject to change without notice
