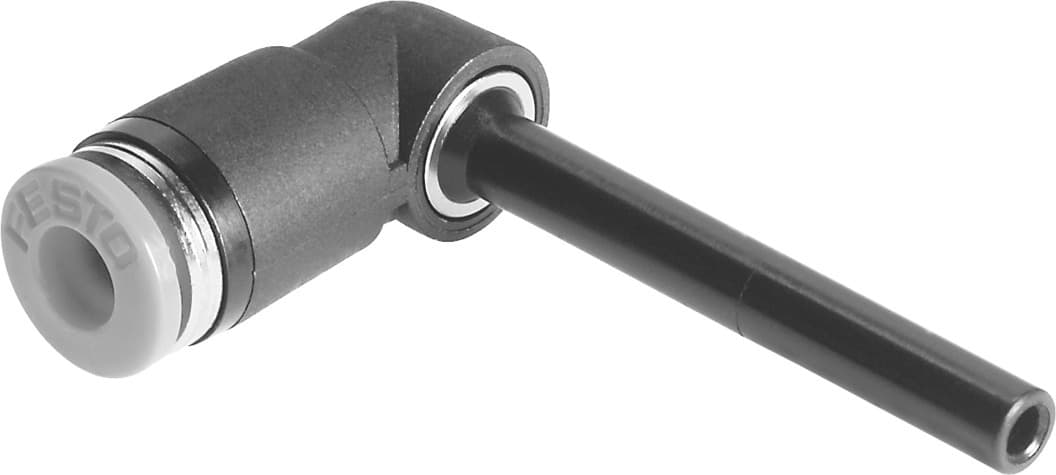

qsl-1/2h-5/16-u
Product ID:6743
Updated: 2026/4/3
Key Features
- 1Ensure leak-free pneumatic connections up to 10 bar. 2、Install quickly with the push-in sleeve design. 3、Connect to standard tubing sizes for versatile applications. 4、Utilize RoHS-compliant materials for durability. 5、Reduce maintenance costs with a corrosion-resistant design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.9mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Product weight | 13g |
| Pneumatic connection 1 | Push-in sleeve ? 1/2" | Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" |
| Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190632 |
Specifications may be subject to change without notice
