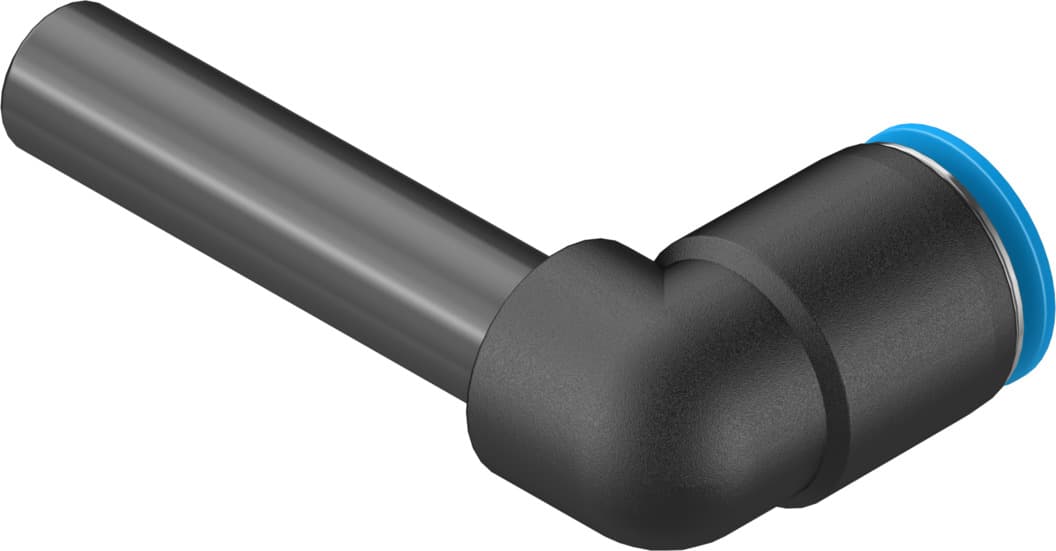

qsl-1/4hl-u
Product ID:2795
Updated: 2026/4/4
Key Features
- 1Ensure secure pneumatic connections with the reliable Festo QSL-1/4HL-U push-in L-connector. 2、Install and remove tubing quickly using the tool-free push-pull principle. 3、Fit 1/4 inch tubing with a 3.1 mm nominal width for versatile applications. 4、Operate reliably from -10°C to 60°C, supporting lubricated media. 5、Construct with RoHS-compliant PBT and POM for low corrosion and sustainability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3.1mm |
| Mounting position | Any | Design | L-shape, long |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Product weight | 4.3g |
| Pneumatic connection 1 | Push-in sleeve ? 1/4" | Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" |
| Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153659 |
Specifications may be subject to change without notice
