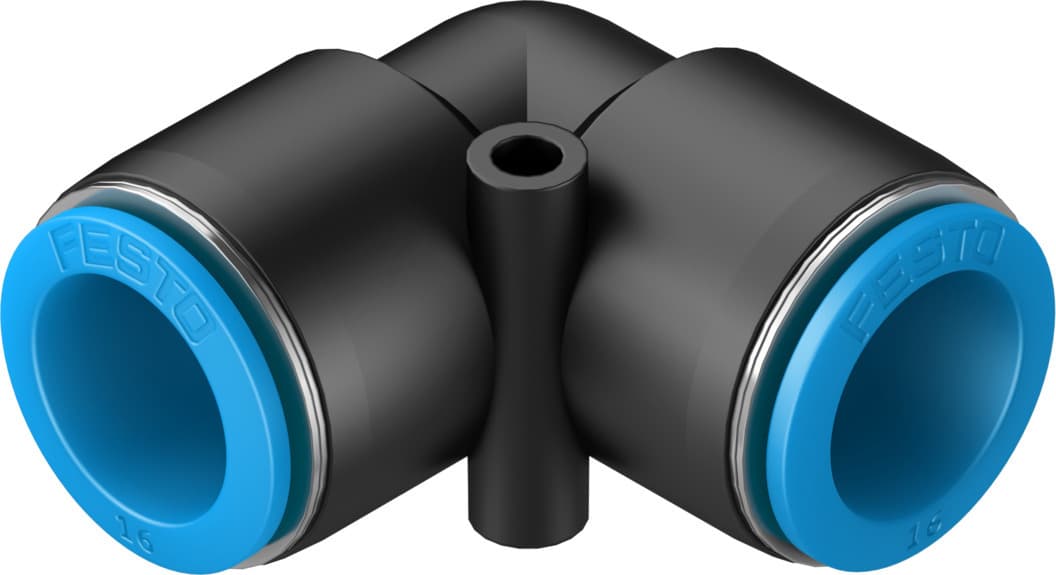

qsl-16-20
Product ID:1325
Updated: 2026/4/4
Key Features
- 1Ensure secure connections with the reliable push-pull principle. 2、Operate in a wide temperature range from -10°C to 80°C. 3、Handle pressures up to 0.6 MPa (6 bar) with a 13 mm nominal size. 4、Use with compressed air or water per ISO 8573-1:2010 standards. 5、Benefit from durable, corrosion-resistant PBT, POM, and NBR materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 13mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape | Pack size | 20 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 31g |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 16 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 133194 |
