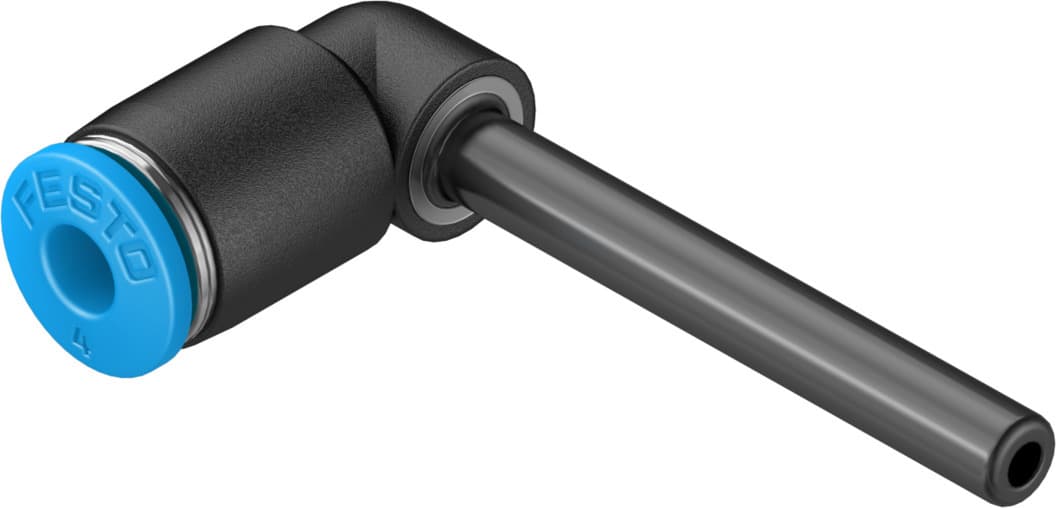

qsl-4hl
Product ID:2412
Updated: 2026/4/4
Key Features
- 1Install quickly without tools using the push-in fitting system. 2、Ensure durable connections with PBT thermoplastic and stainless steel claw. 3、Handle diverse media like compressed air and water reliably. 4、Mount in any position for flexible industrial setup layouts. 5、Meet industry standards including RoHS and VDMA24364-B1/B2-L.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2mm |
| Mounting position | Any | Design | L-shape, long |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 2.8g |
| Pneumatic connection 1 | Push-in sleeve ? 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153065 |
Specifications may be subject to change without notice
