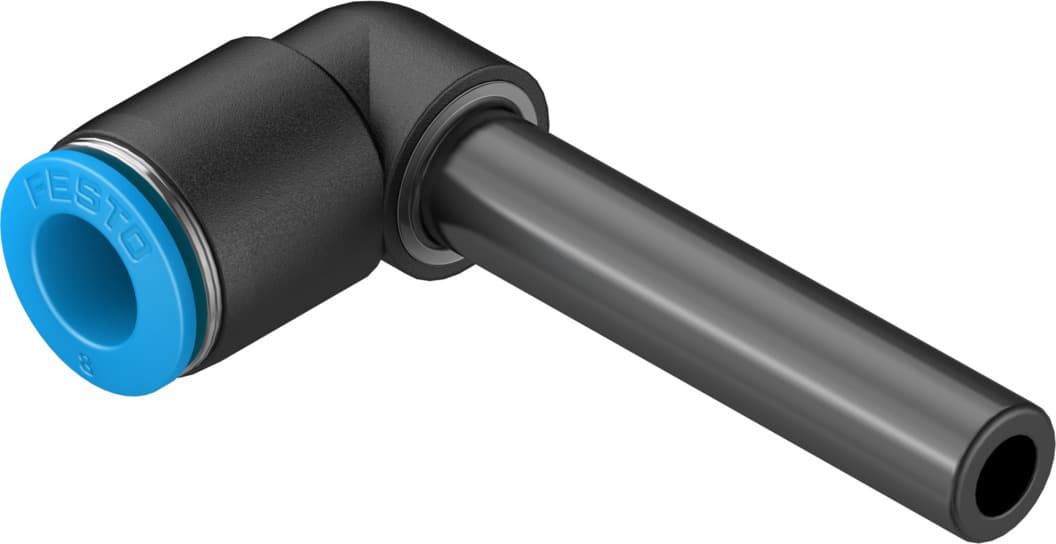

qsl-8hl
Product ID:2414
Updated: 2026/4/4
Key Features
- 1Handle operating pressures up to 14 bar for robust performance. 2、Withstand temperatures up to 80°C in demanding environments. 3、Utilize the push-pull principle for quick and tool-free assembly. 4、Ensure compatibility with compressed air and lubricated operations. 5、Construct with high-quality PBT and POM materials for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.5mm |
| Mounting position | Any | Design | L-shape, long |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 6.2g |
| Pneumatic connection 1 | Push-in sleeve ? 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153067 |
Specifications may be subject to change without notice
