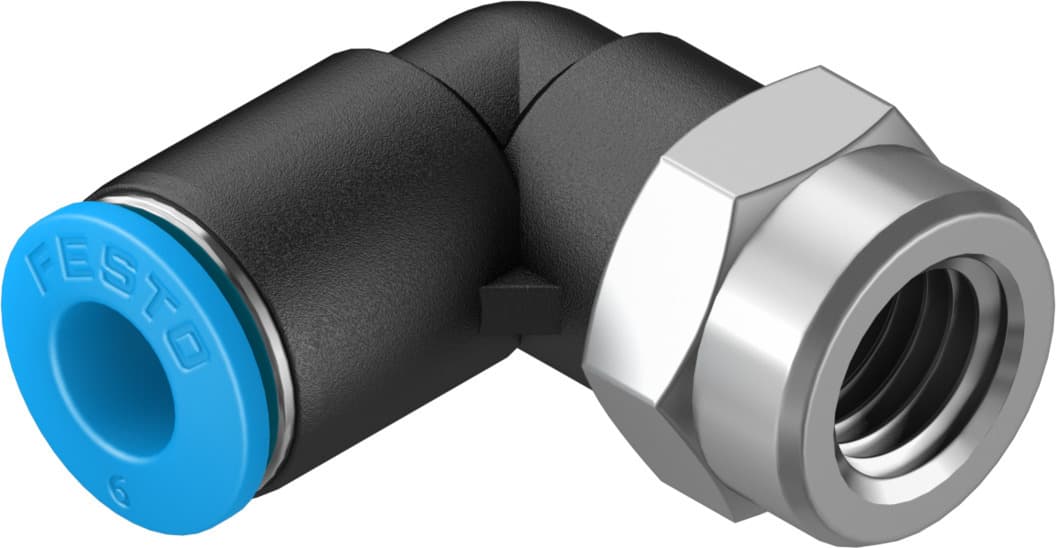

qslf-1/8-6-b
Product ID:2620
Updated: 2026/7/6
Key Features
- 1Ensure easy, secure connections with the push-pull principle.
- 2Achieve versatile mounting via a 360° orientable design.
- 3Utilize RoHS-compliant materials like PBT and POM.
- 4Operate reliably from -10°C to 80°C and up to 6 bar.
- 5Suit cleanroom and maritime applications with specific certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.2mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 15g |
| Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | Internal thread G1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153274 |
Specifications may be subject to change without notice
