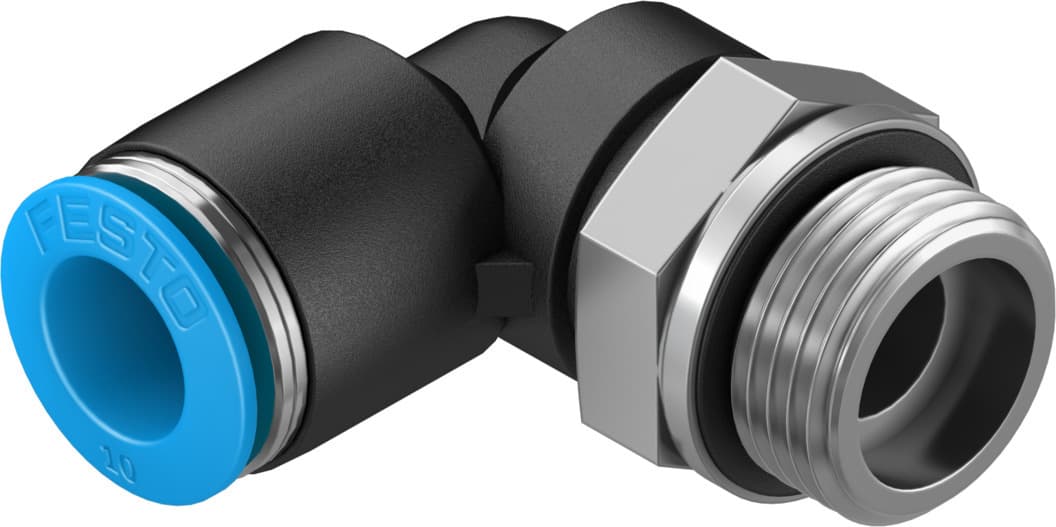

qsl-g3/8-10
Product ID:5890
Updated: 2026/4/3
Key Features
- 1Integrate seamlessly into pneumatic systems for smooth operation. 2、Orient 360° for flexible and easy installation. 3、Handle high pressure up to 14 bar for demanding applications. 4、Resist corrosion (CRC 1) for durability in harsh environments. 5、Ensure reliable connections with precision engineering and quality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8.3mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 33g |
| Type of mounting | External hexagon, AF 20 | Pneumatic connection 1 | External thread G3/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 186123 |
