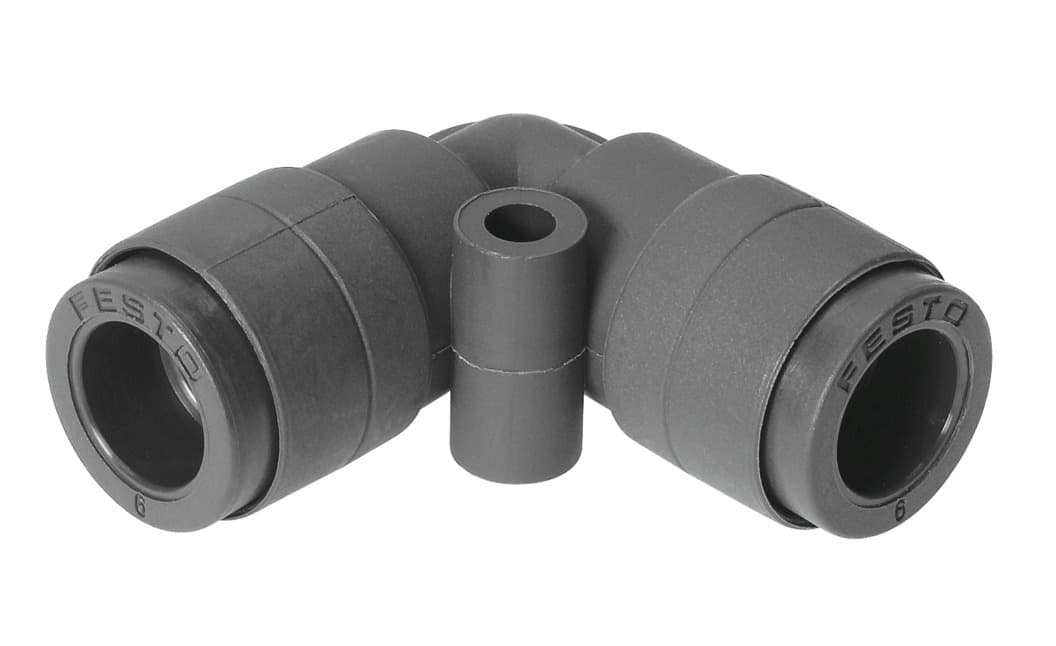

qsl-v0-10
Product ID:4058
Updated: 2026/4/3
Key Features
- 1Ensure high-quality pneumatic connections with a nominal size of 8 mm. 2、Provide easy and secure connection using a push-pull principle. 3、Operate reliably within a temperature range of 0°C to 60°C. 4、Comply with RoHS environmental regulations using PBT materials. 5、Resist welding spatter and corrosion for demanding applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8.3mm |
| Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Design | L-shape |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 0°C 60°C | Product weight | 19g |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Black | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | PBT |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
| Manufacturer ID | 160542 |
Specifications may be subject to change without notice
