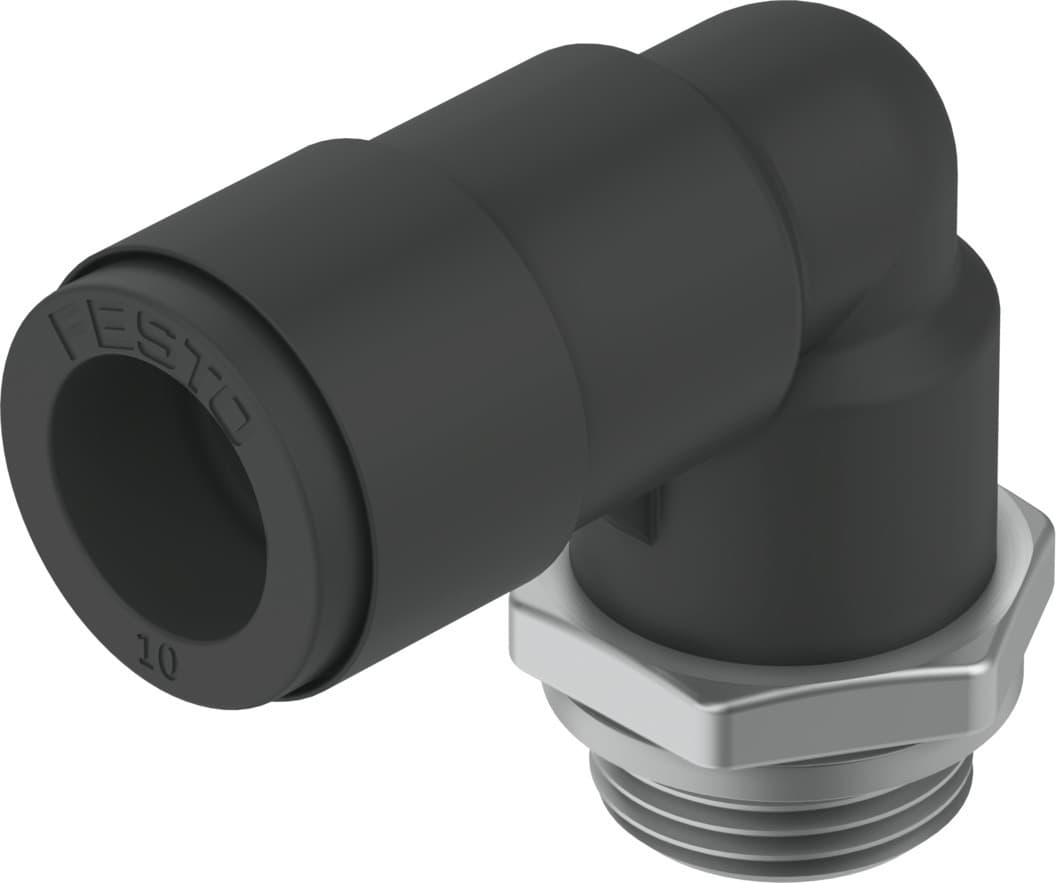

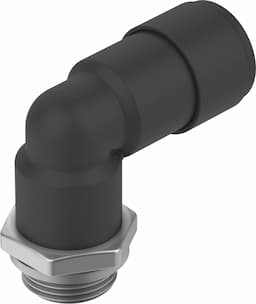

qsl-v0-g1/4-8
Product ID:6095
Updated: 2026/7/4
Key Features
- 1Withstand welding spatter for durability in harsh industrial environments.
- 2Feature a 360° orientable design for easy installation and flexible routing.
- 3Provide a secure connection with male thread and external hexagon.
- 4Operate reliably in temperatures up to 80°C and pressure up to 6 bar.
- 5Construct from nickel-plated brass and polymer for longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.7mm |
| Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Sealing ring |
| Design | L-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
| Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 25g | Type of mounting | External hexagon, AF 17 |
| Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Material of threaded seal | Aluminum PBT | Releasing ring material | PBT |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
| Manufacturer ID | 186328 |
Specifications may be subject to change without notice
