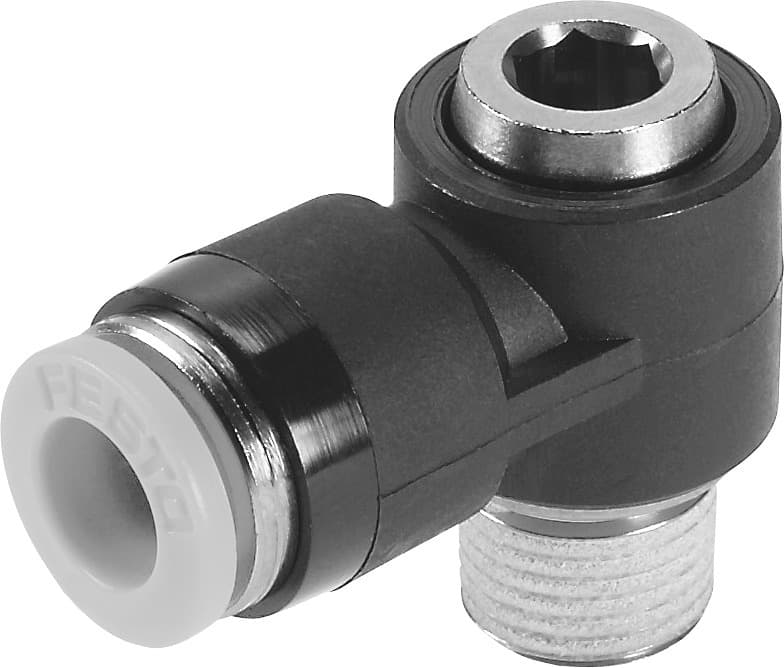

qslv-1/4-5/16-i-u
Product ID:6793
Updated: 2026/4/3
Key Features
- 1Secure high-pressure pneumatic connections up to 10 BAR. 2、Simplify installation with the internal hex mounting system. 3、Ensure durability using PBT housing and POM release ring. 4、Meet compressed air quality standards with ISO 8573-1:2010 compliance. 5、Streamline procurement with standardized single-pack availability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Max. tightening torque | 14Nm | Product weight | 28g |
| Type of mounting | Hex socket 5/16 | Pneumatic connection 1 | external thread 1/4 NPT |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" | Ambient temperature Fahrenheit | 14°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 190758 |
Specifications may be subject to change without notice
