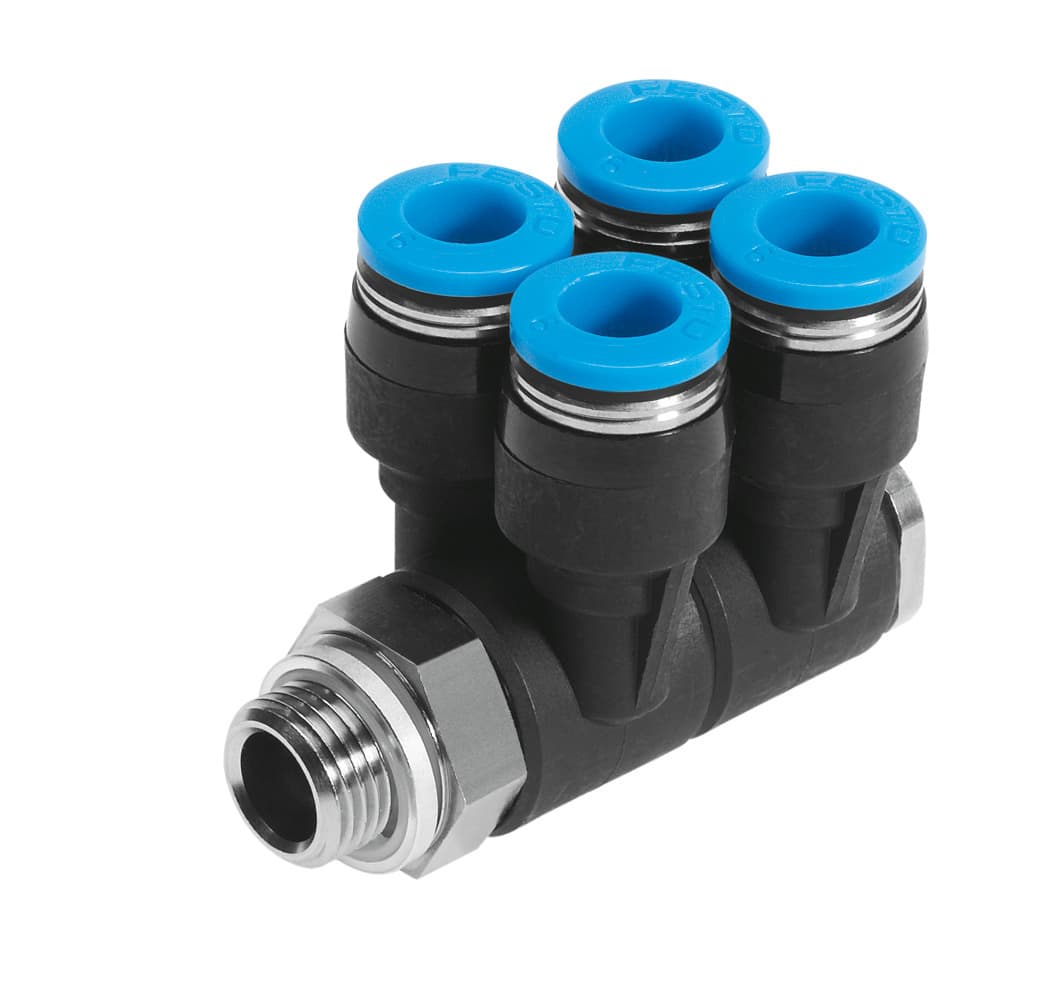

qslv4-g1/4-8
Product ID:6014
Updated: 2026/4/3
Key Features
- 1Ensure balanced and consistent air supply to multiple pneumatic devices. 2、Integrate easily into tight spaces with a compact, adaptable design. 3、Endure rigorous conditions with high-quality PBT and stainless steel. 4、Simplify installation and maintenance with a straightforward push-pull design. 5、Enhance system flexibility via wide pneumatic compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.1mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Structural design | Push-pull principle | Pack size | 1 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 54g | No. of outlets | 4 |
| No. of supply lines | 1 | Pneumatic connection 1 | External thread G1/4 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 186247 |
Specifications may be subject to change without notice
