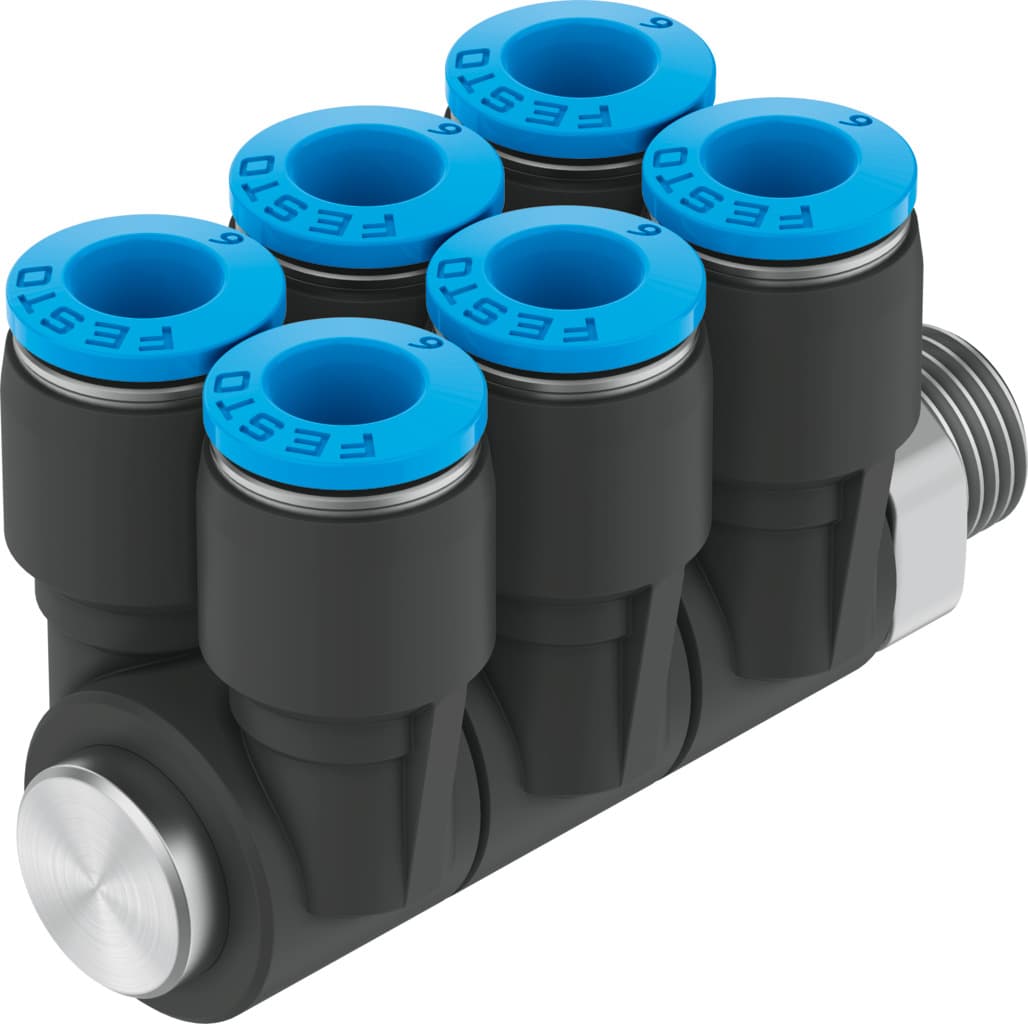

qslv6-1/8-6
Product ID:2588
Updated: 2026/4/4
Key Features
- 1Connect up to 6 lines with 360° orientable ports for versatile layouts. 2、Ensure secure, leak-free connections with a standard 2.9 mm nominal size. 3、Assemble and disassembly easily using the push-pull principle, no tools needed. 4、Use with compressed air (ISO 8573-1) or water for broad application flexibility. 5、Meet strict standards with low corrosion stress (CRC 1) and RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.9mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Structural design | Push-pull principle | Pack size | 1 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 45g | No. of outlets | 6 |
| No. of supply lines | 1 | Pneumatic connection 1 | External thread R1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153242 |
Specifications may be subject to change without notice
