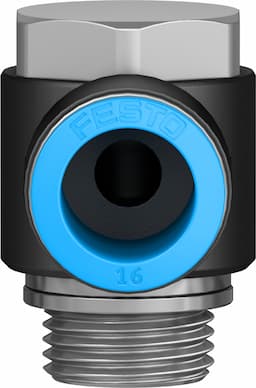

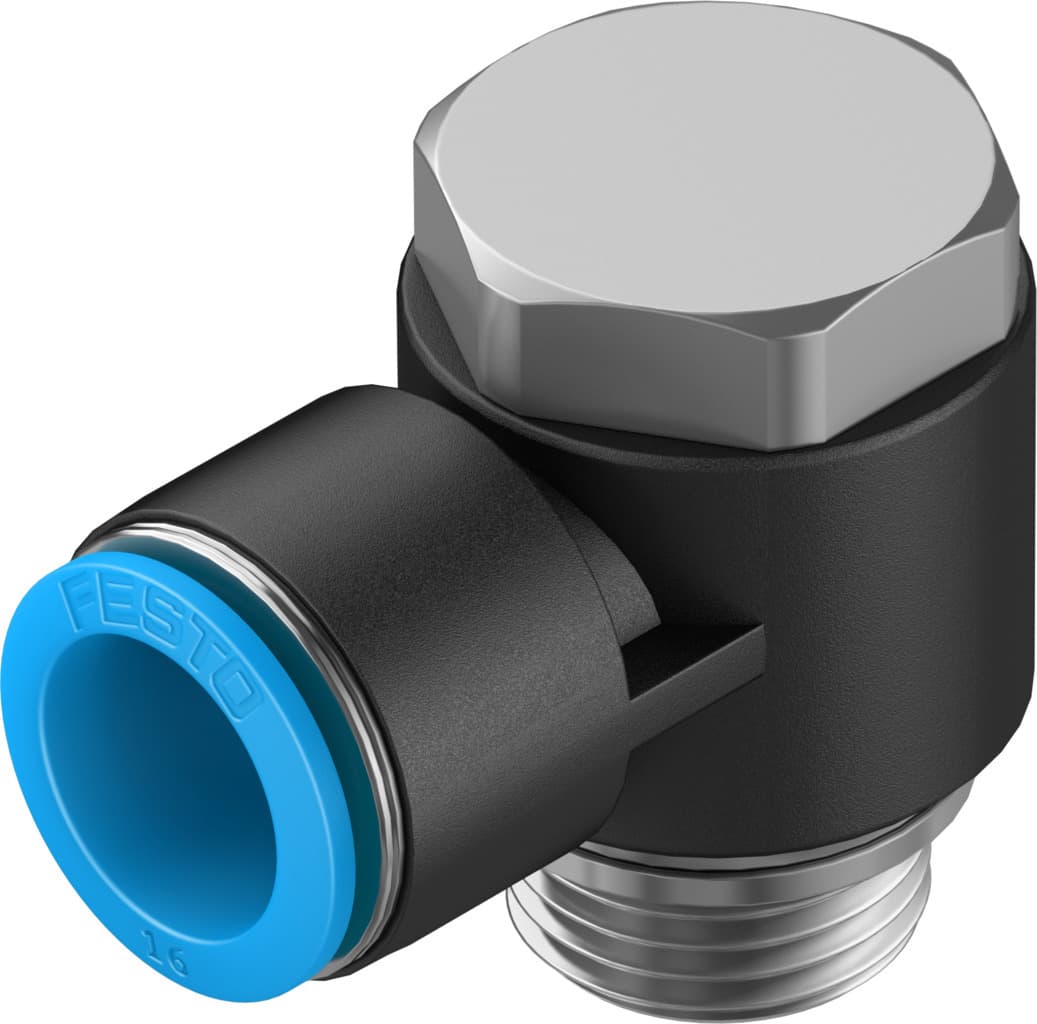

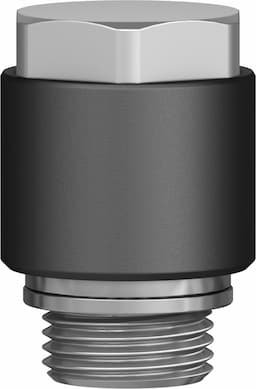

qslv-g1/2-16
Product ID:5914
Updated: 2026/7/5
Key Features
- 1Achieve reliable sealing up to 14 bar pressure.
- 2Utilize a PBT body and sealing ring for durability.
- 3Connect easily with 16 mm tubing for compressed air or water.
- 4Install in versatile L-shape designs with optional mounting.
- 5Deploy in ISO 14644-1 Class 4 cleanroom environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 13mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 115g | Type of mounting | Hollow bolt with external hex |
| Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186147 |
Specifications may be subject to change without notice
