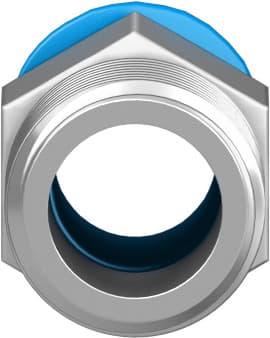

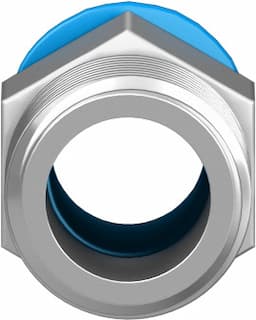

qsm-1/8-6-100
Product ID:1034
Updated: 2026/4/3
Key Features
- 1Ensure secure, leak-free connections meeting ISO 8573-1:2010 standards. 2、Install in any position for flexible pneumatic system setup. 3、Utilize corrosion-resistant brass and nickel-plated materials for durability. 4、Operate across a wide -10°C to 80°C temperature range. 5、Connect and disconnect easily with the push-pull principle to reduce downtime.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 4.5mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 6g | Type of mounting | External hexagon, AF 10 |
| Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |

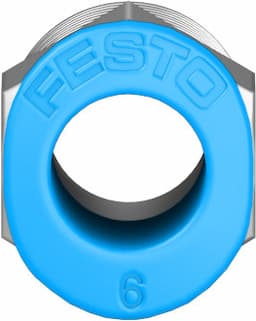

| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130756 |
Specifications may be subject to change without notice
