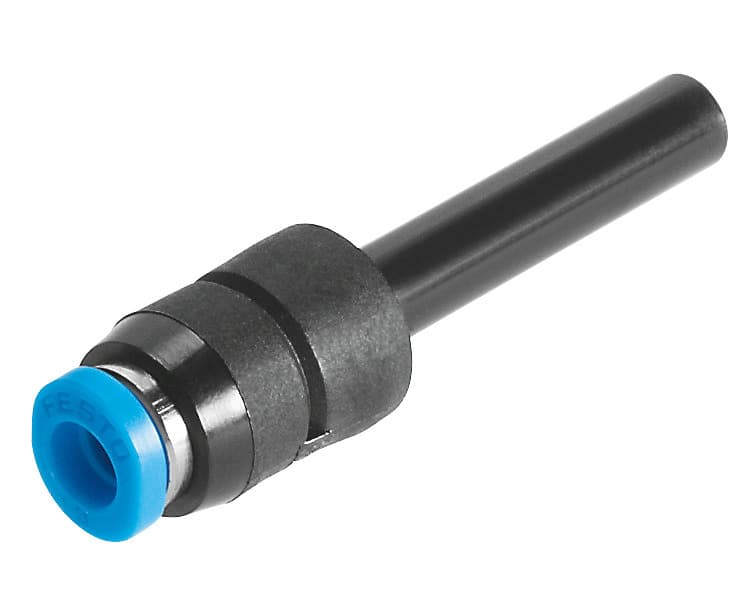

qsm-3h-2
Product ID:1304
Updated: 2026/4/4
Key Features
- 1Maximize space in tight pneumatic systems with this compact QSM-3H-2 push-in connector. 2、Handle diverse applications with a wide operating pressure range from -0.95 to 6 bar. 3、Ensure leak-free connections via a sealing ring on the screwed plug. 4、Utilize RoHS-compliant PBT housing and POM release ring for durability. 5、Install flexibly with an optional mounting position for various setups.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.1mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 0.6g | Pneumatic connection 1 | Push-in sleeve ? 3 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 2 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133035 |
Specifications may be subject to change without notice
