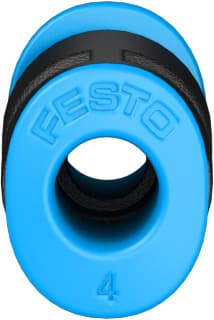

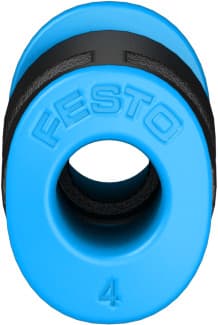

qsm-4-100
Product ID:1036
Updated: 2026/4/3
Key Features
- 1Utilize the miniaturized QSM-4-100 design for space-constrained pneumatic systems. 2、Achieve flexible installation with optional mounting positions. 3、Ensure reliable performance with operating pressures up to 6 bar. 4、Benefit from low corrosion stress (CRC 1) in challenging environments. 5、Simplify setup using the push-pull principle and optimized bending radius.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.6mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 2g |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130758 |
Specifications may be subject to change without notice
