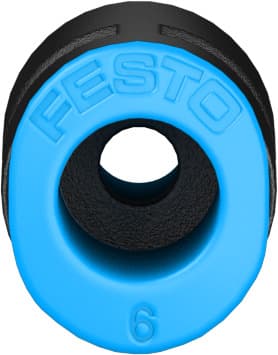

qsm-6-4-100
Product ID:1039
Updated: 2026/4/3
Key Features
- 1Ensure reliability in high-pressure and temperature dynamic environments. 2、Simplify installation with a push-pull design featuring 1 inlet and 1 outlet. 3、Construct fittings from high-quality PBT and POM materials for excellent chemical resistance. 4、Achieve versatile integration by compatibility with Festo PEN, PUN, and PAN series. 5、Meet ISO 8573-1:2010 standards for safe operation in compressed air systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.7mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 3g |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130761 |
Specifications may be subject to change without notice
