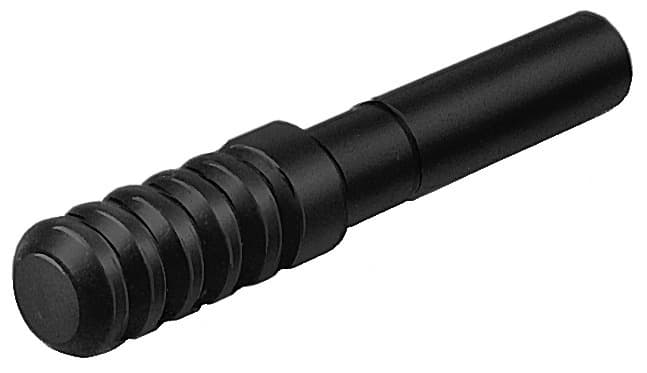

qsmc-2h
Product ID:1305
Updated: 2026/4/4
Key Features
- 1Fit mini pneumatic connections in tight spaces with a compact design. 2、Ensure easy, secure connections using a 2 mm push-in sleeve. 3、Operate reliably across a wide -10°C to 80°C temperature range. 4、Benefit from RoHS-compliant PBT plastic for excellent corrosion resistance. 5、Support pressures up to 6 bar and temperature-dependent pressures to 14 bar.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Mounting position | Any |
| Design | Blanking plug | Pack size | 10 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 0.1g |
| Pneumatic connection 1 | push-in sleeve ? 2 mm | Note on materials | RoHS-compliant |
| Housing material | PBT | Manufacturer ID | 133036 |
Specifications may be subject to change without notice
