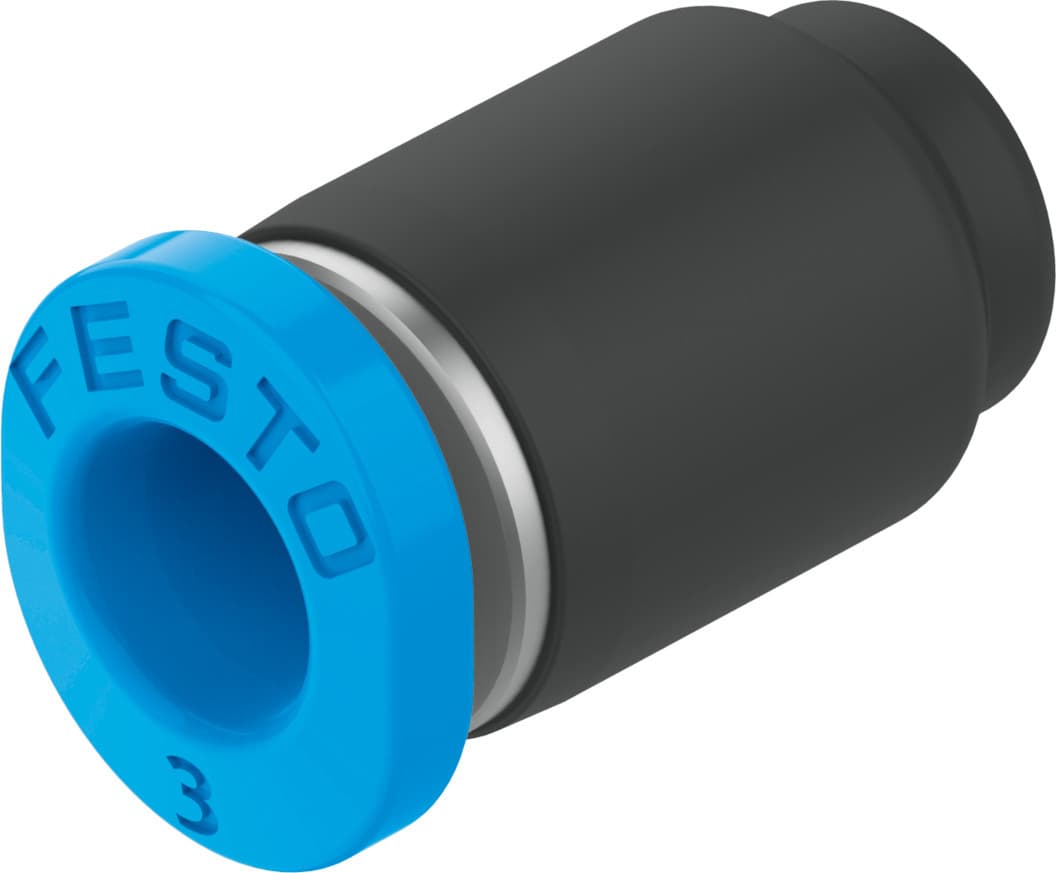

qsmc-3
Product ID:2718
Updated: 2026/4/4
Key Features
- 1Secure 3mm tubing in compact pneumatic systems. 2、Utilize the push-pull principle for easy installation. 3、Operate reliably from -10°C to 80°C. 4、Ensure compliance with RoHS environmental standards. 5、Benefit from lubricated operation and corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Mounting position | Any |
| Design | Blanking plug | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 0.5g | Pneumatic connection 1 | for pneumatic tubing outside diameter 3 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153381 |
Specifications may be subject to change without notice
