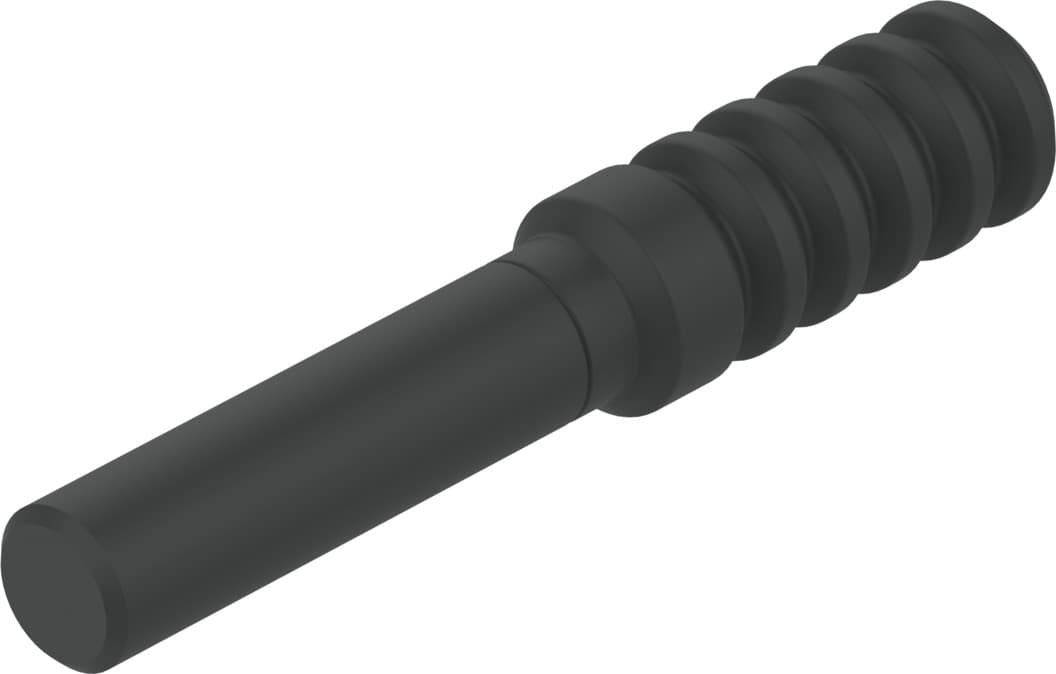

qsmc-3h
Product ID:2719
Updated: 2026/4/4
Key Features
- 1Secure mini pneumatic connections with a compact 3 mm push-in design. 2、Operate reliably across a wide -10°C to 80°C temperature range. 3、Ensure easy installation and maintenance with lubricated or dry air compatibility. 4、Resist corrosion in low-stress environments with CRC 1 rating. 5、Meet RoHS standards using compliant PBT material in 10-unit packs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Mounting position | Any |
| Design | Blanking plug | Pack size | 10 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 0.2g |
| Pneumatic connection 1 | Push-in sleeve ? 3 mm | Note on materials | RoHS-compliant |
| Housing material | PBT | Manufacturer ID | 153382 |
Specifications may be subject to change without notice
