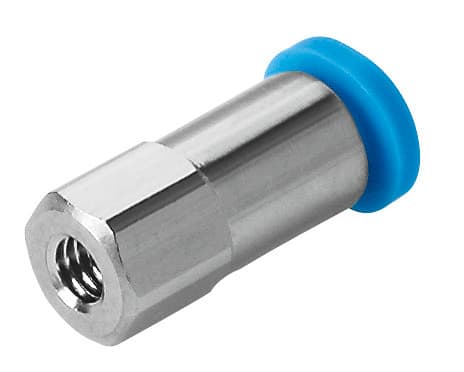

qsmf-m5-3
Product ID:2646
Updated: 2026/7/6
Key Features
- 1Connect pneumatic systems effortlessly with this compact push-in fitting.
- 2Operate reliably across a wide pressure range from -0.095 to 0.6 MPa.
- 3Ensure leak-free connections using the fitting's integrated sealing ring.
- 4Install flexibly with an optional mounting position for various applications.
- 5Meet VDMA24364 standards with low corrosion stress for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.9mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 4.3g | Type of mounting | External hexagon, AF 8 |
| Pneumatic connection 1 | Internal thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153309 |
Specifications may be subject to change without notice
