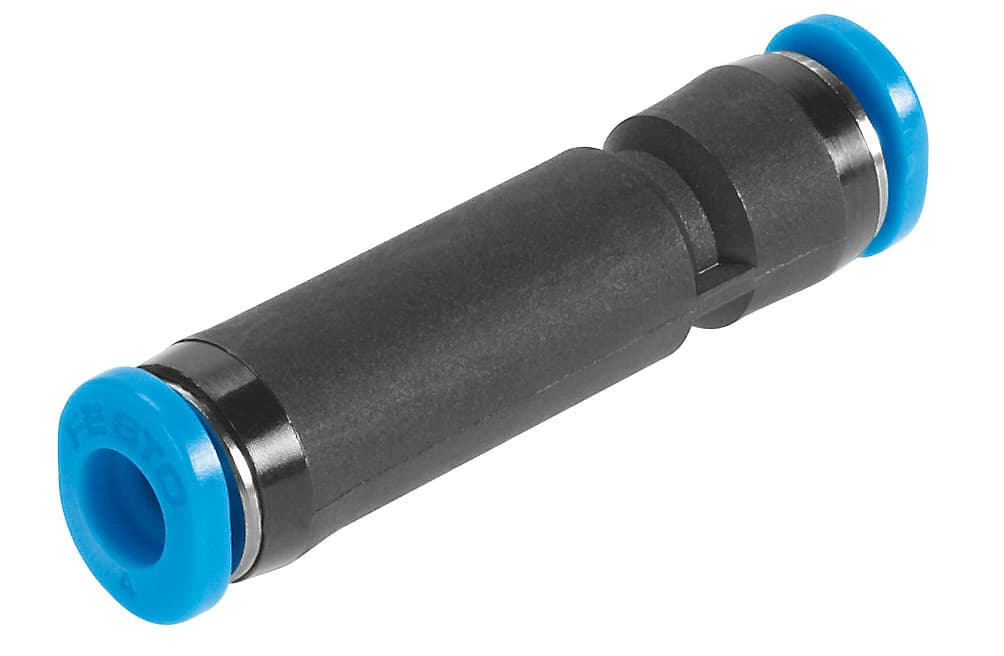

qsmk-1/8t-u
Product ID:6736
Updated: 2026/4/3
Key Features
- 1Minimize space usage with a compact, miniature design. 2、Resist corrosion effectively using brass with low corrosion stress. 3、Mount flexibly with optional positions for versatile setup. 4、Operate easily via a simple push-pull connection mechanism. 5、Ensure compliance by meeting ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.5mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Product weight | 4g |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 1/8" | Pneumatic connection 2 | for pneumatic tubing outside diameter 1/8" |
| Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190592 |
Specifications may be subject to change without notice
