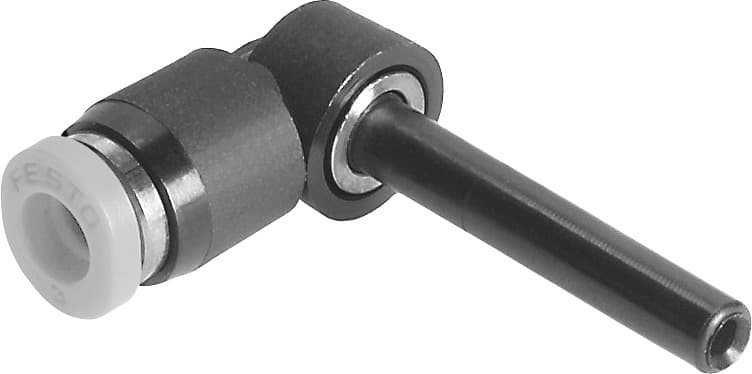

qsml-1/8h-u
Product ID:6738
Updated: 2026/7/4
Key Features
- 1Minimize space with a 1.2 mm nominal width.
- 2Connect tubing easily using the Ø 1/8" push-in sleeve.
- 3Operate reliably from -0.095 MPa to 1 MPa.
- 4Ensure compatibility with ISO 8573-1:2010 compressed air.
- 5Resist corrosion with CRC 1 rating for low stress.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.2mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Product weight | 1.7g |
| Pneumatic connection 1 | Push-in sleeve ? 1/8" | Pneumatic connection 2 | for pneumatic tubing outside diameter 1/8" |
| Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190620 |
Specifications may be subject to change without notice
