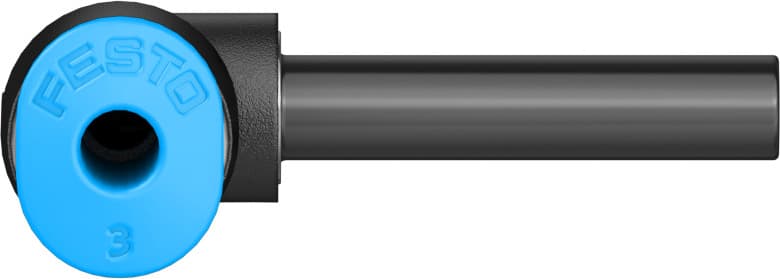

qsml-4h-3
Product ID:2686
Updated: 2026/4/4
Key Features
- 1Optimize space with the miniaturized 1.7mm QSML-4H-3 L-connector. 2、Ensure reliability across a -10°C to 80°C operating temperature range. 3、Support versatile media use with compressed air and lubricant compatibility. 4、Meet environmental standards using RoHS-compliant PBT and POM materials. 5、Simplify procurement with convenient 10-piece pack availability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.7mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 1.7g |
| Pneumatic connection 1 | Push-in sleeve ? 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153349 |
Specifications may be subject to change without notice
