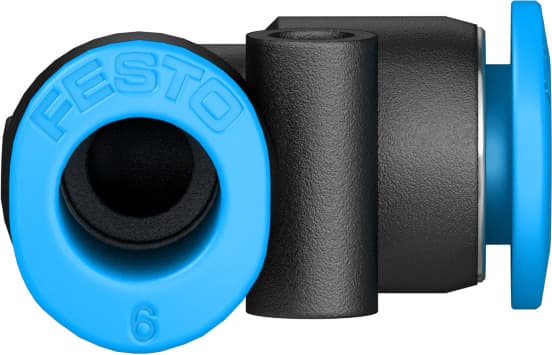

qsml-6-100
Product ID:1045
Updated: 2026/7/4
Key Features
- 1Minimize space usage with a compact design for 6 mm tubing in tight pneumatic layouts.
- 2Simplify installation using the push-pull principle for quick, secure connections.
- 3Ensure versatile operation across a pressure range from -0.95 bar to 6 bar.
- 4Maximize durability with PBT housing and corrosion-resistant materials.
- 5Guarantee compliance and safety with ISO 8573-1:2010 and RoHS standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 3.4mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 4g |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130767 |
Specifications may be subject to change without notice
