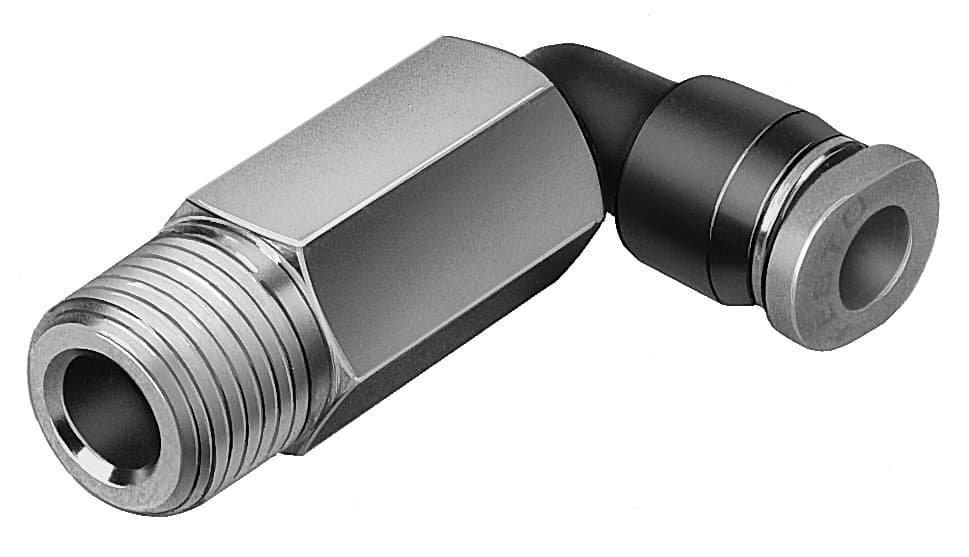

qsmll-1/8-4
Product ID:2677
Updated: 2026/7/6
Key Features
- 1Optimize mini pneumatic systems with a 2.5 mm nominal size and R1/8 male thread.
- 2Install flexibly in any position using the 360° orientable design.
- 3Ensure reliable sealing with the coating seal on the screw-in stud.
- 4Operate reliably in temperatures from -10°C to 80°C and pressures to 6 bar.
- 5Utilize corrosion-resistant, RoHS-compliant PBT material for longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape, long | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 13g | Type of mounting | External hexagon, AF 10 |
| Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153340 |
