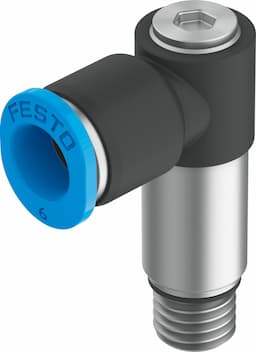

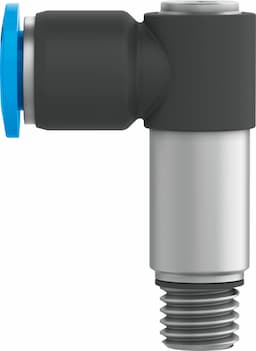

qsmllv-m7-6-i
Product ID:1114
Updated: 2026/7/4
Key Features
- 1Ensure easy installation with a straight push-pull design.
- 2Handle pressures from -0.95 to 6 bar for versatile use.
- 3Resist corrosion using nickel-plated brass construction.
- 4Identify quickly with the distinctive blue release ring.
- 5Purchase conveniently in packs of 10 for bulk needs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.9mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape, long | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 2.2Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 12.4g | Type of mounting | Internal hexagon, AF 3 |
| Pneumatic connection 1 | External thread M7 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130837 |
Specifications may be subject to change without notice
