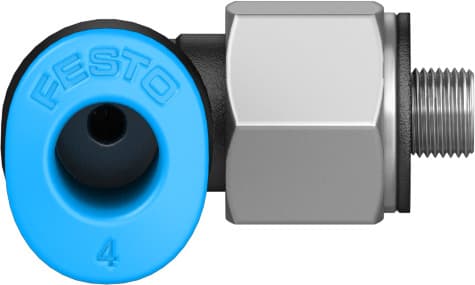

qsml-m3-4-100
Product ID:1047
Updated: 2026/7/4
Key Features
- 1Ensure reliable performance in compressed air applications with this versatile L-shaped elbow fitting.
- 2Simplify installation using the push-in principle and 360° orientable design.
- 3Handle up to 6 bar pressure for various standard high-pressure applications.
- 4Achieve secure, compliant connections with the included sealing ring and ISO 8573-1:2010 standards.
- 5Benefit from excellent corrosion resistance and durability with PBT and POM materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.3mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 0.48Nm | Tolerance for nominal tightening torque | ± 55% |
| Product weight | 3g | Type of mounting | External hexagon, AF 8 |
| Pneumatic connection 1 | External thread M3 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130769 |
