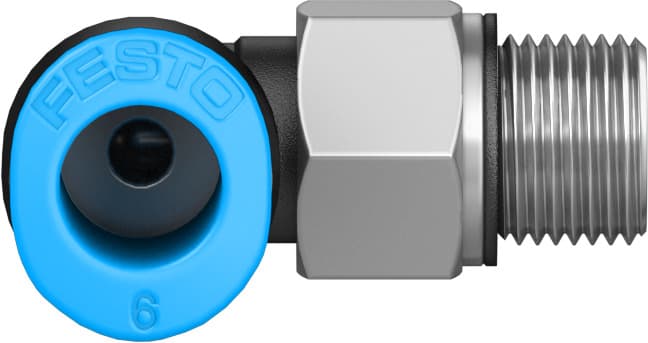

qsml-m7-6
Product ID:6120
Updated: 2026/4/3
Key Features
- 1Ensure secure connections in compressed air systems with the QSML-M7-6. 2、Achieve precise control using its 2.4 mm nominal size and 2.2 Nm torque. 3、Optimize sealing with the integrated sealing ring for 6 mm tubing. 4、Resist corrosion with nickel-plated brass and PBT construction meeting CRC 1. 5、Operate reliably from -10°C to 80°C and up to 0.6 MPa pressure.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.4mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 2.2Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 6.2g | Type of mounting | External hexagon, AF 10 |
| Pneumatic connection 1 | External thread M7 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186353 |
