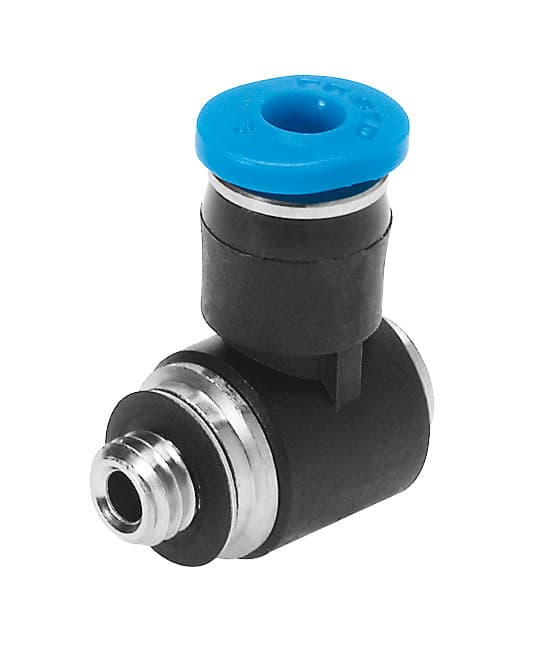

qsmlv-m5-3-i
Product ID:1107
Updated: 2026/4/3
Key Features
- 1Handle operating pressures up to 14 bar for demanding applications. 2、Utilize a compact design with a 1.7 mm nominal size. 3、Benefit from an optional mounting position for flexible installation. 4、Construct from nickel-plated brass, PBT, and NBR for durability. 5、Operate reliably within a -10°C to 80°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.7mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 5.1g | Type of mounting | Internal hexagon, AF 3 |
| Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130830 |
