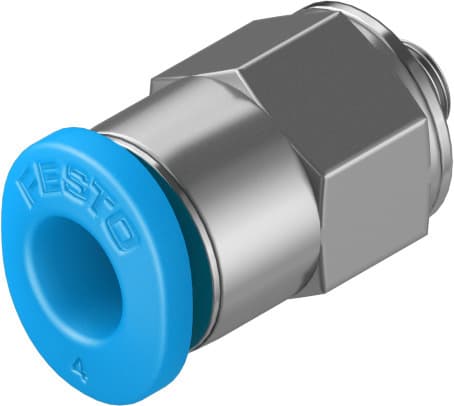

qsm-m3-4-100
Product ID:1054
Updated: 2026/4/3
Key Features
- 1Construct from nickel-plated steel for durability and corrosion resistance. 2、Feature a straight design with a 1.5mm internal hex thread for versatility. 3、Install easily using the push-pull principle, minimizing tool needs. 4、Operate from -10°C to 80°C and withstand pressures up to 6 bar. 5、Comply with ISO 8573-1:2010 and RoHS standards for quality assurance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.1mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 0.48Nm | Tolerance for nominal tightening torque | ± 55% |
| Product weight | 2.4g | Type of mounting | External hexagon, AF 8 |
| Pneumatic connection 1 | External thread M3 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Steel, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130776 |
