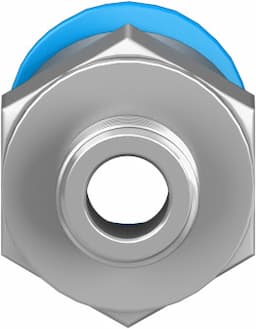

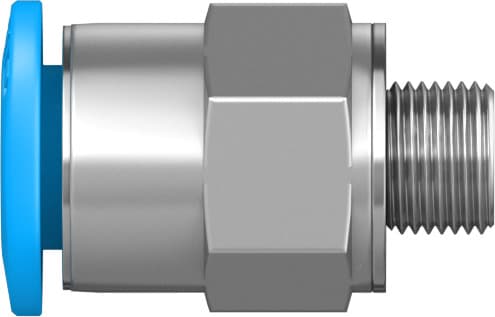

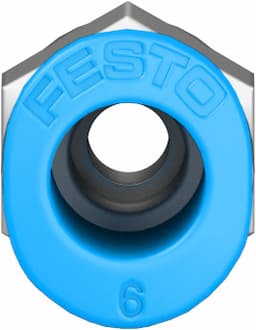

qsm-m5-6-100
Product ID:1057
Updated: 2026/4/3
Key Features
- 1Feature a mini 2.1 mm nominal diameter for compact pneumatic systems. 2、Operate reliably across a wide -0.95 to 6 bar pressure range. 3、Install quickly with the push-pull principle to boost efficiency. 4、Utilize brass, nickel plating, and NBR seals for low corrosion stress. 5、Incorporate high-alloy stainless steel in the clamping segment for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.1mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 4.5g | Type of mounting | External hexagon, AF 10 |
| Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130779 |
Specifications may be subject to change without notice
