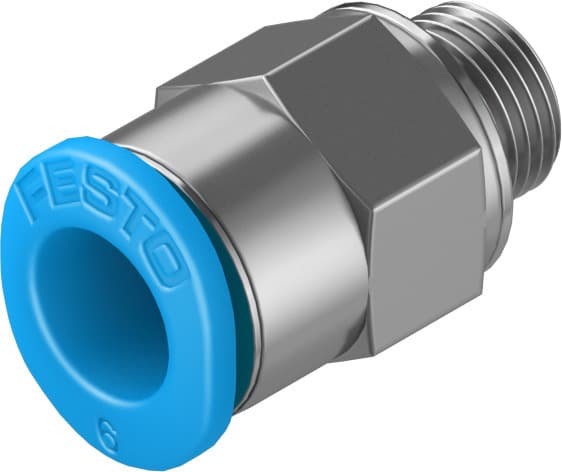

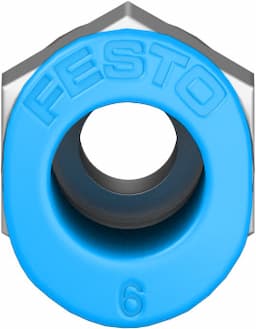

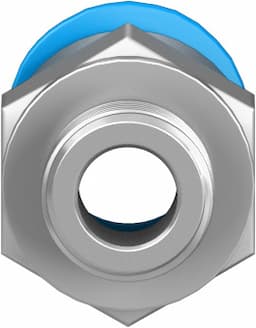

qsm-m6-6
Product ID:1192
Updated: 2026/4/3
Key Features
- 1Minimize space usage with a compact design for tight layouts. 2、Handle up to 6 bar pressure for robust system performance. 3、Ensure leak-free connections with an integrated sealing ring. 4、Achieve flexible installation using optional mounting positions. 5、Meet cleanroom standards with low-corrosion, VDMA-compliant materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.8mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 4.8g | Type of mounting | External hexagon, AF 10 |
| Pneumatic connection 1 | External thread M6 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 132600 |
Specifications may be subject to change without notice
