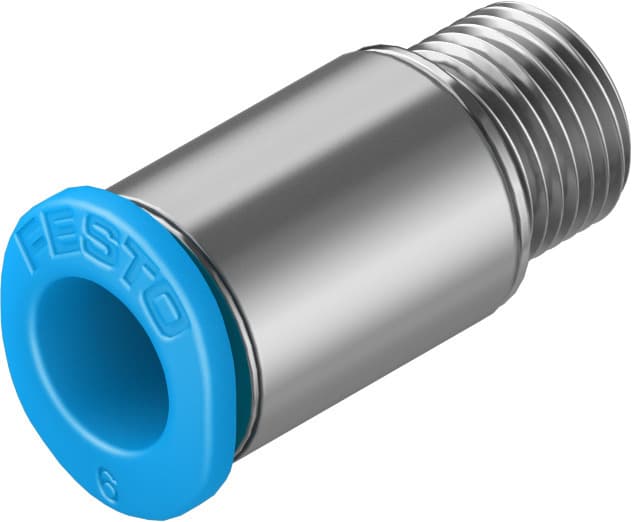

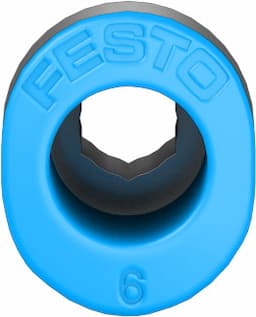

qsm-m7-1/4-i-u-m
Product ID:5688
Updated: 2026/4/3
Key Features
- 1Ensure secure, leak-free pneumatic connections for reliable system performance. 2、Fit into tight spaces with a compact 0.114-inch nominal size. 3、Provide excellent durability with a high-quality sealing ring. 4、Install flexibly in any position for versatile application setups. 5、Meet ISO 8573-1:2010 and RoHS standards for guaranteed quality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.896mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
| Nominal tightening torque | 3.35Nm | Tolerance for nominal tightening torque | ± 20% |

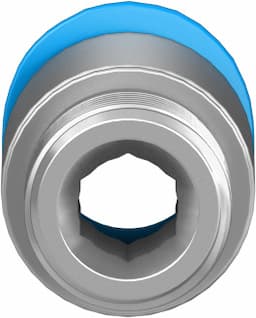

| Product weight | 3.997g | Type of mounting | Internal hexagon, AF 4 |
| Pneumatic connection 1 | External thread M7 | Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" |
| Ambient temperature Fahrenheit | 32°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | Brass Nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 183740 |
Specifications may be subject to change without notice
