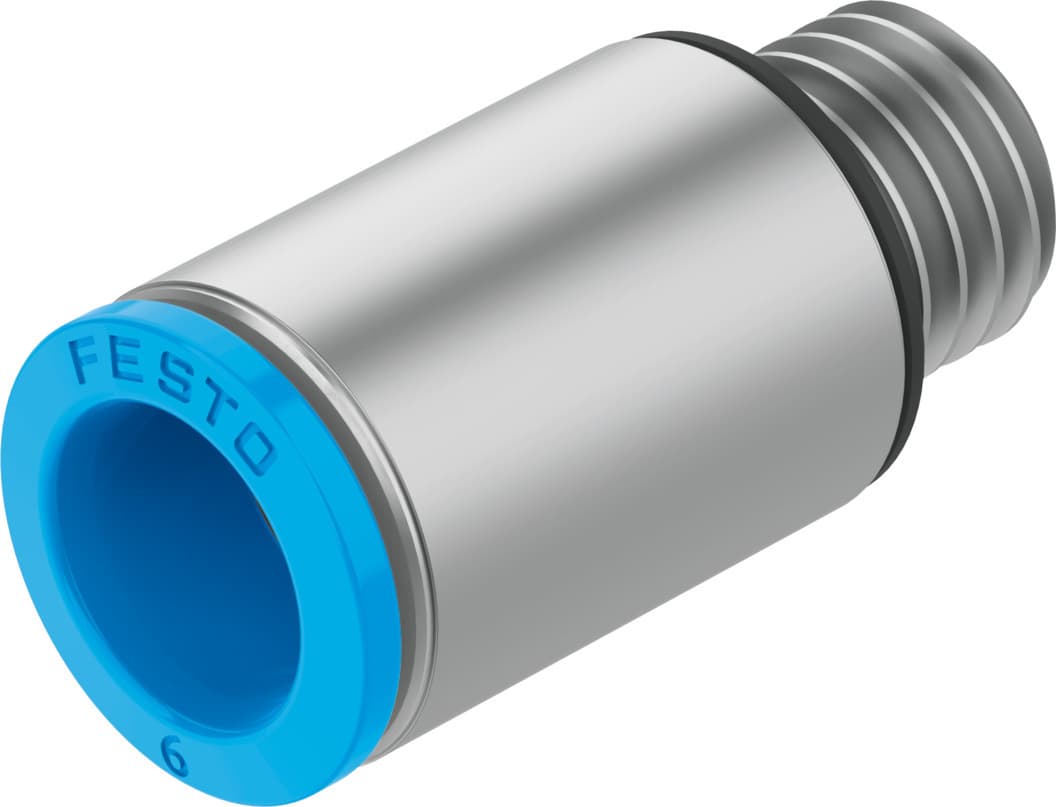

qsm-m7-6-i-r-100
Product ID:1245
Updated: 2026/7/4
Key Features
- 1Secure pneumatic connections up to 6 bar with the Festo QSM-M7-6-I-R-100.
- 2Install in any position using the internal hexagon and M7 male thread.
- 3Operate reliably across a -10°C to 80°C temperature range.
- 4Ensure durability with corrosion-resistant nickel-plated brass construction.
- 5Simplify procurement with RoHS compliance and bulk pack availability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 4.1mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | straight design, round releasing ring | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 2.2Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 6.4g | Type of mounting | Internal hexagon, AF 4 |
| Pneumatic connection 1 | External thread M7 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 132919 |
Specifications may be subject to change without notice
