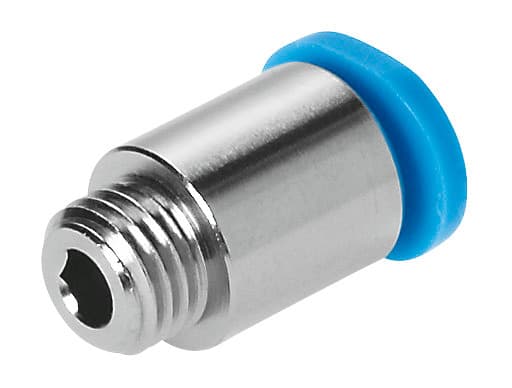

qsmp-m6x0.75-4
Product ID:2657
Updated: 2026/4/4
Key Features
- 1Connect pneumatic lines easily with the push-pull principle. 2、Handle up to 6 bar operating pressure reliably. 3、Ensure durability with nickel-plated brass construction. 4、Achieve secure sealing in compact 2.5 mm nominal size systems. 5、Meet RoHS compliance for lubricated operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.5mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 2.7g | Type of mounting | Internal hexagon, AF 2.5 |
| Pneumatic connection 1 | External thread M6x0.75 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153320 |
Specifications may be subject to change without notice
