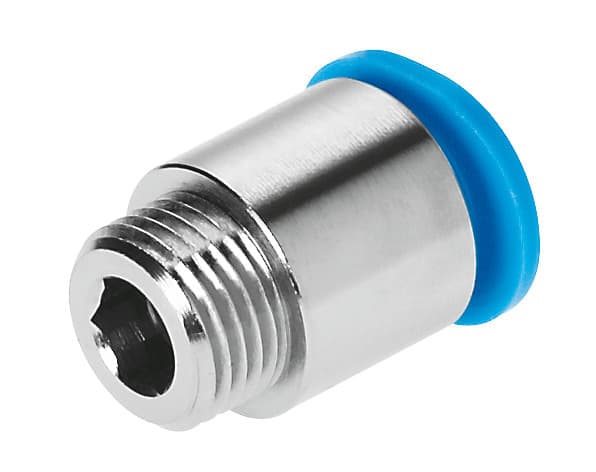

qsmp-m8x0.75-6
Product ID:2659
Updated: 2026/4/4
Key Features
- 1Connect pneumatic tubing easily with the push-in design and M8x0.75 male thread. 2、Handle operating pressures from -0.95 to 6 bar for reliable performance. 3、Withstand low corrosion stress thanks to its CRC 1 corrosion resistance rating. 4、Ensure durability and RoHS compliance with nickel-plated brass construction. 5、Install the QSMP-M8X0.75-6 in any position for flexible system design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 4mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 3.7g | Type of mounting | Internal hexagon, AF 4 |
| Pneumatic connection 1 | External thread M8x0.75 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153322 |
Specifications may be subject to change without notice
