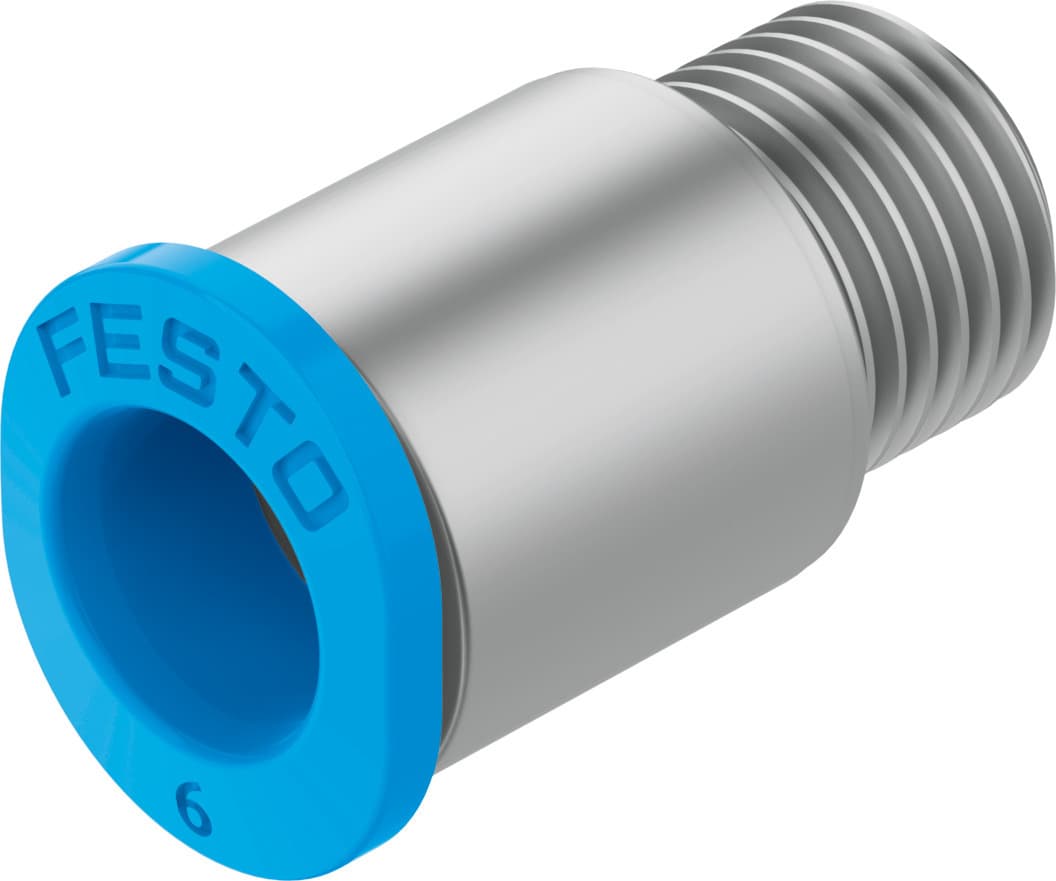

qsmp-m8x1.25-6
Product ID:2861
Updated: 2026/4/3
Key Features
- 1Secure pneumatic connections with M8x1.25 thread and 6mm tubing port. 2、Ensure reliable sealing using the integrated sealing ring. 3、Simplify assembly and disassembly via the push-pull principle. 4、Operate in a wide temperature range from -10°C to 80°C. 5、Resist corrosion in harsh environments with CRC 1 rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 4mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 4.7g | No. of outlets | 1 |
| No. of supply lines | 1 | Type of mounting | Internal hexagon, AF 4 |
| Pneumatic connection 1 | External thread M8x1.25 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 154434 |
Specifications may be subject to change without notice
