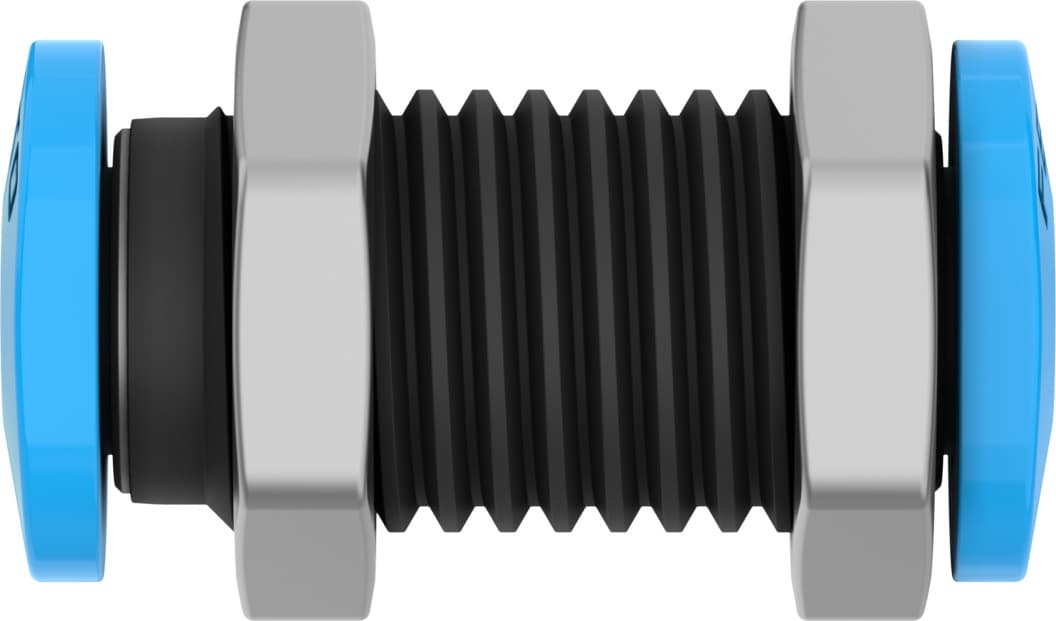

qsms-3
Product ID:2712
Updated: 2026/4/4
Key Features
- 1Optimize space with a mini 1.7 mm nominal width design. 2、Enable flexible installation using optional mounting positions. 3、Ensure reliable performance across a -0.95 to 14 bar pressure range. 4、Withstand harsh environments with CRC 1 corrosion resistance. 5、Meet RoHS standards using anodized aluminum and POM materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.7mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 3g |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 3 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Aluminum, anodized | Releasing ring material | POM |
| Nut material | Brass, nickel-plated | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153375 |
Specifications may be subject to change without notice
