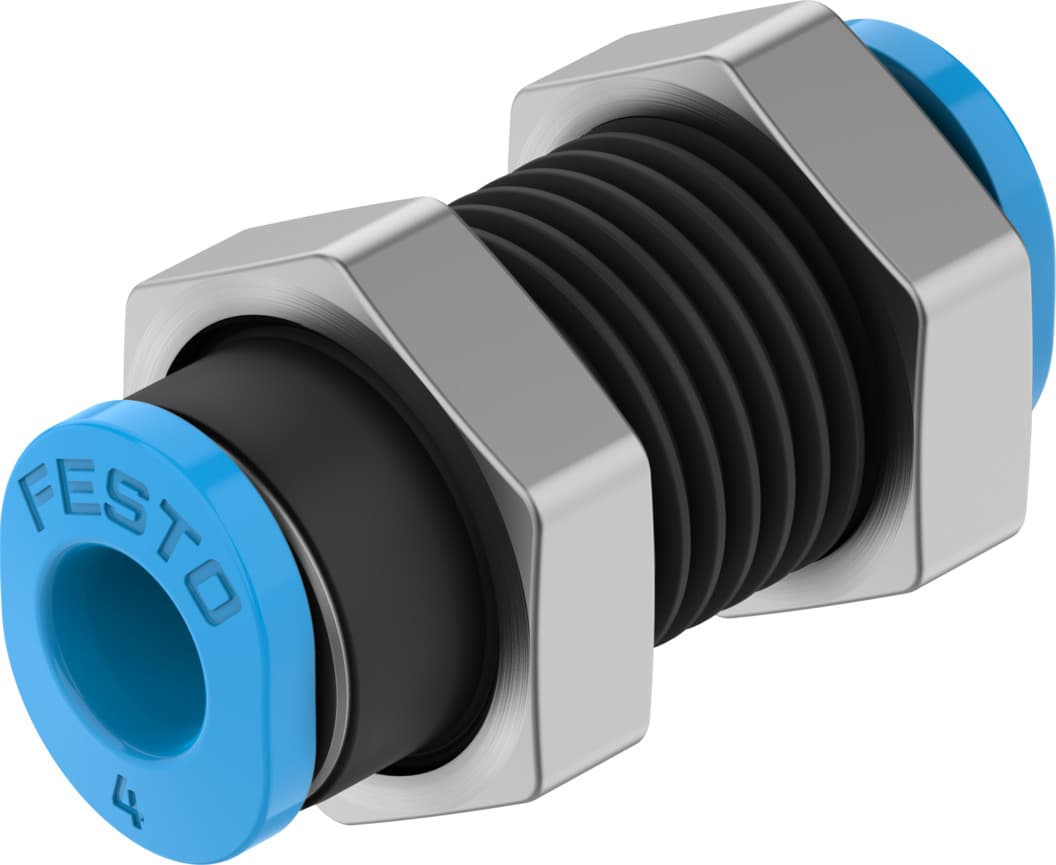

qsms-4-100
Product ID:1058
Updated: 2026/4/3
Key Features
- 1Utilize a compact 2.2 mm nominal size for space-constrained pneumatic systems. 2、Assemble quickly and securely using the intuitive push-pull principle. 3、Operate reliably with compressed air per ISO 8573-1:2010 from -10°C to 80°C. 4、Resist corrosion effectively with CRC 1 rating and LABS (PWIS) compliance. 5、Construct with durable anodized aluminum, POM, and nickel-plated brass.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.2mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 6g |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Aluminum, anodized | Releasing ring material | POM |
| Nut material | Brass, nickel-plated | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130780 |
Specifications may be subject to change without notice
